ATX
MBD-X11SAT (Workstation)
Single socket H4 (LGA 1151) supports ,Intel® Xeon® processor E3-1200 v5/v6, Intel® 6th/7th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®,Intel® C236 chipset,Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots,3 PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1 PCI-E 3.0 x1 (in x4), and 1 5V PCI 32-bit slots

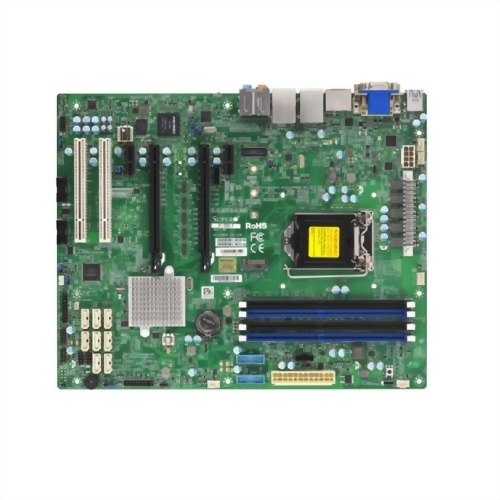

MBD-X11SAE-F (Workstation)
Single socket H4 (LGA 1151) supports, Intel® Xeon® processor E3-1200 v5/v6, Intel® 6th/7th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®Intel® C236 chipset, Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots, 2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 2 PCI-E 3.0 x1, and 2 5V PCI 32-bit slots, Single GbE LAN with Intel® i210-AT (Share with IPMI); single GbE LAN with Intel® i219LM, 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 ...
MBD-X11SAE(Workstation)
Single socket H4 (LGA 1151) supports, Intel® Xeon® processor E3-1200 v5/v6, Intel® 6th/7th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® Intel® C236 chipset Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots, 2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 3 PCI-E 3.0 x1 (in x4), and 2 5V PCI 32-bit slots, Single GbE LAN with Intel® i210-AT, Single GbE LAN with Intel® i219LM, 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242...

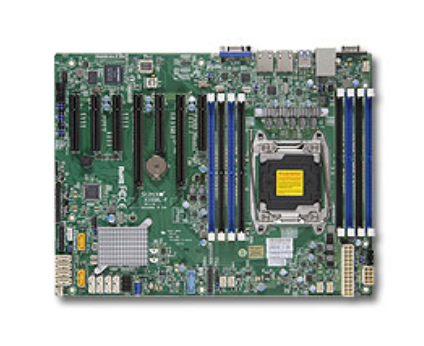

MBD-X10SRL-F-B (Bulk Pack)
Single socket R3 (LGA 2011) supports：Intel® Xeon® processor E5-2600，v4†/ v3 and E5-1600 v4†/ v3 family，Intel® C612 chipset，Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots，7x PCI-E slots total:2 PCI-E 3.0 x8, 2 PCI-E 3.0 x8 (in x16),2 PCI-E 3.0 x4 (in x8) or 1 x8 + 1 x0，(auto-switch), & 1 PCI-E 2.0 x4 (in x8)

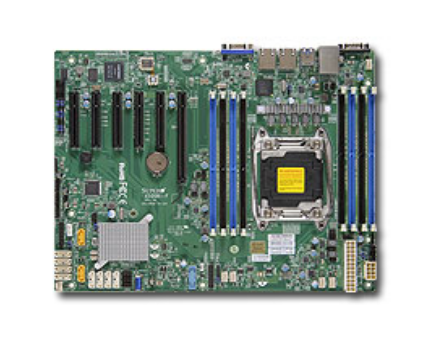

MBD-X10SRi-F (High Performance)
Single socket R3 (LGA 2011) supports，Intel® Xeon® processor E5-2600，v4†/ v3 and E5-1600 v4†/ v3 family，Intel® C612 chipset，Up to 1TB† ECC 3DS LRDIMM , up to，DDR4- 2400†MHz ; 8x DIMM slots，Intel® i350-AM2 Dual port GbE LAN，10x SATA3 (6Gbps) via C612

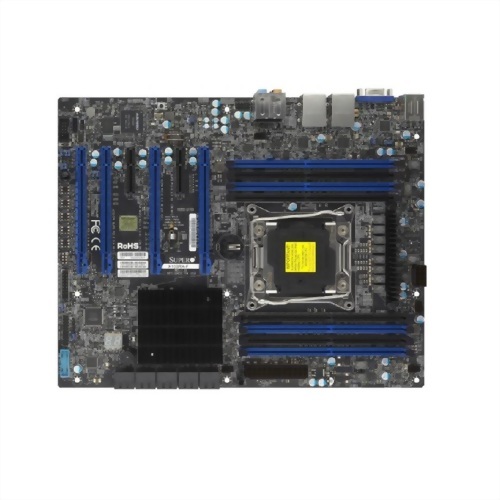

MBD-X10SRA-F (Workstation)
*.ATX-伺服器等級工業主機板
Single socket R3 (LGA 2011) supports,Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3, Core i7,Intel® C612 chipset,Up to 512GB ECC DDR4 2400†MHz LRDIMM or 128GB ECC/non-ECC UDIMM (available with Core i7 only); 8 DIMM slots,4 PCI-E 3.0 16 (run at 16/16/NA/8 or 16/8/8/8), 2 PCI-E 2.0 1 (in x4),Intel® i210-AT Dual port GbE LAN,10 SATA3 (6Gbps)
Single socket R3 (LGA 2011) supports,Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3, Core i7,Intel® C612 chipset,Up to 512GB ECC DDR4 2400†MHz LRDIMM or 128GB ECC/non-ECC UDIMM (available with Core i7 only); 8 DIMM slots,4 PCI-E 3.0 16 (run at 16/16/NA/8 or 16/8/8/8), 2 PCI-E 2.0 1 (in x4),Intel® i210-AT Dual port GbE LAN,10 SATA3 (6Gbps)
MBD-X10SRA (Workstation)
Single socket R3 (LGA 2011) supports,Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3, Core i7,Intel® C612 chipset,Up to 512GB ECC DDR4 2400†MHz LRDIMM or 128GB ECC/non-ECC UDIMM (available with Core i7 only); 8 DIMM slots
