Single socket H4 (LGA 1151) supports, Intel® Xeon® processor E3-1200 v5/v6, Intel® 6th/7th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® Intel® C236 chipset Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots, 2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 3 PCI-E 3.0 x1 (in x4), and 2 5V PCI 32-bit slots, Single GbE LAN with Intel® i210-AT, Single GbE LAN with Intel® i219LM, 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280) I/O: 2 COM, TPM header, 6 USB 3.0 (2 rear + 4 via header(s)) 8 USB 2.0 (2 rear + 6 via header(s)) 2 USB 3.1 (10Gbps, rear)
型號 :

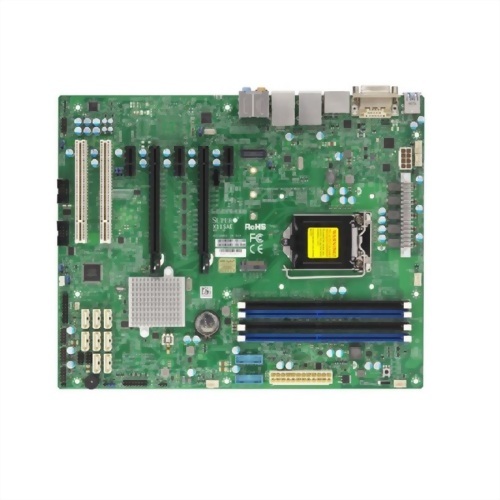

X11SAE
-
Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium® - Intel® C236 chipset
- Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
- 2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 3 PCI-E 3.0 x1 (in x4), and 2 5V PCI 32-bit slots
-
Single GbE LAN with Intel® i210-AT,
Single GbE LAN with Intel® i219LM - 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280)
- I/O: 2 COM, TPM header
-
6 USB 3.0 (2 rear + 4 via header(s))
8 USB 2.0 (2 rear + 6 via header(s))
2 USB 3.1 (10Gbps, rear)
Parts List
| Parts List (Bulk Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SAE | 1 | X11SAE Motherboard |
| I/O Shield | MCP-260-00063-1N | 1 | X11SAE I/O Shield |
| SATA cable | CBL-0044L | 2 | 57.5CM SATA FLAT S-S PBF |
| Parts List (Retail Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X11SAE | 1 | X11SAE Motherboard |
| I/O Shield | MCP-260-00063-1N | 1 | X11SAE I/O Shield |
| SATA cable | CBL-0044L | 6 | 57.5CM SATA FLAT S-S PBF |
| Quick Reference Guide | MNL-1820-QRG | 1 | X11SAE Quick Reference Guide |
