Micro ATX

顯示模式:

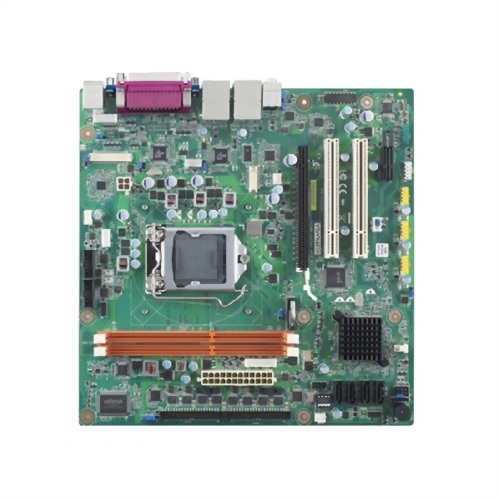

Micro ATX-Motherboard-Intel® Core™ i7/i5/i3 processor

Intel® Core™ i7/i5/i3 LGA1155 MicroATX with
CRT/DVI/LVDS, 10 COM, 10 USB 2.0, Dual LAN

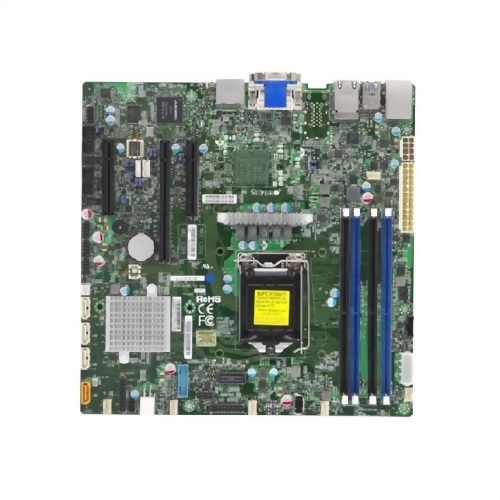

MBD-X11SSZ-QF (vPro AMT Embedded IPMI)

-Single socket H4 (LGA 1151) supports
Intel® 7th/6th Gen. Core i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
-Intel® Q170 Express chipset
-Up to 64GB DDR4 2400MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots
-1 PCI-E 3.0 x16
2 PCI-E 3.0 x4 (in x8 slot)
-Dual GbE LAN w/ Intel i219LM + i210AT
-2 DP, 1 DVI-I, 3 independent displays via Intel HD Graphics, VGA port for BMC
-4 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
-I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
-IPMI, AMT vPro
-Supports 12V DC power input

MBD-X11SSQ-L (Embedded Desktop)

-Single socket H4 (LGA 1151) supports
Intel® 7th/6th Gen. Core i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
-Intel® H110 Chipset
-Up to 32GB Unbuffered Non-ECC UDIMM DDR4 2400MHz; 2 DIMM slots
-Expansion slots:
1 PCI-E 3.0 x16
1 PCI-E 2.0 x4 w/ open slots
1 PCI-E 2.0 x1
-Intel® i219LM GbE LAN
-4 SATA3 (6Gbps) via H110, Intel® RST
-HDMI, DP, DVI-D
Intel HD Graphics
2 Independent Displays
-1 SATA DOM, 2 COM ports, TPM header, ALC 888S HD Audio 7.1

MBD-X11SSQ (vPro AMT Embedded Desktop)

-1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port,3 Independent Displays
-Single socket H4 (LGA 1151) supports
Intel® 7th/6th Gen. Core i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
-1 M.2 PCI-E 3.0 x2, 2242/2260/2280
-Intel® Q170 Express chipset
-Up to 64GB DDR4 2400MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots
-1 PCIe 3.0 x16, 2 PCIe 3.0 x4 (w/ open slots),
1x PCI-E 3.0 x1,
M.2 PCIe 3.0 x2 M Key 2242/60/80
-Dual GbE LAN w/ Intel i219LM + i210AT
-6 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
-1 SATA DOM, 4 COM ports, TPM header, ALC 888S HD Audio 7.1
-AMT, vPro

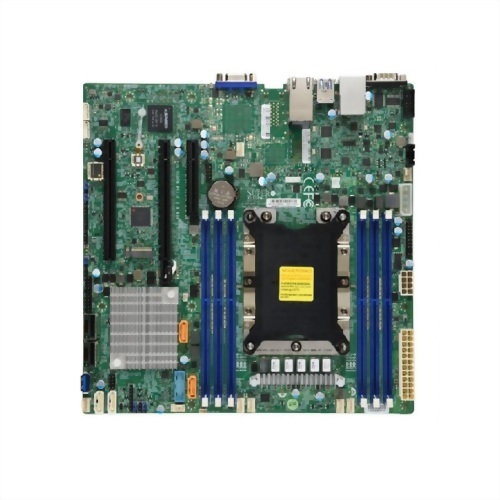

MBD-X11SPM-F (Embedded Ready VROC support)

- 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors., Single Socket P (LGA 3647) supported, CPU TDP support 165W TDP
- Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots;
Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
- Intel® C621 Chipset
- Expansion slots: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x8)
- 2 GbE LAN ports
- 12 SATA3 (6Gbps) via C621
- Supports 12V DC power input
- I/O: 1 VGA, 2 COM, TPM header

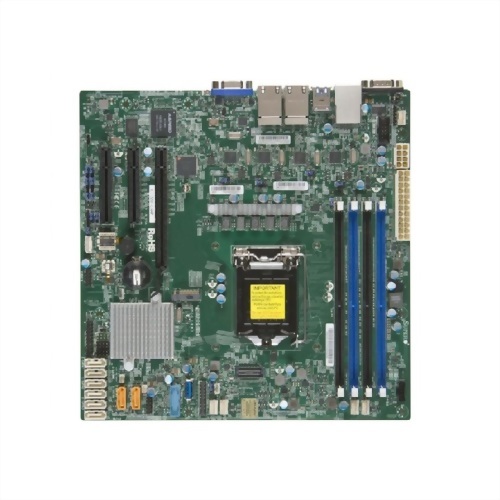

MBD-X11SSH-LN4F

- Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,Intel® Celeron® and Intel® Pentium®
- Intel® C236 chipset
- Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
- Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)
- Quad GbE LAN with Intel® i210-AT
- 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
- I/O: 1 VGA, 2 COM, TPM header
- Support Intel® VHD with selected CPU
- 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

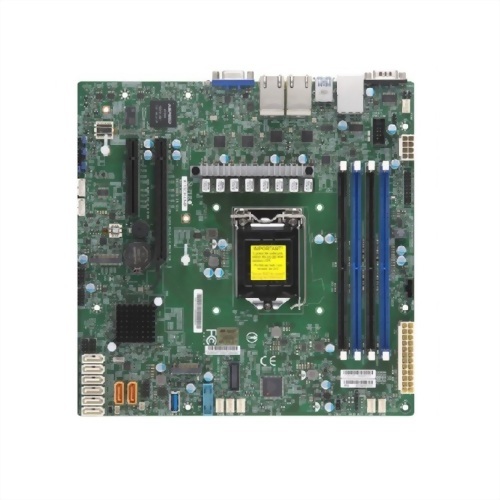

MBD-X11SCH-LN4F

-8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
-Intel® C246 chipset
-Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
-Expansion slots: 1 PCI-E 3.0 x8 (in x16) and 1 PCI-E 3.0 x8 slots
-Quad GbE LAN ports via Intel® i210
-8 SATA3 (6Gbps) via C246; RAID 0, 1, 5, 10
-I/O: 1 VGA, 2 COM, 1 TPM header
-2 SuperDOM with built-in power
-2 USB 3.1 Gen 2 (rear); 3 USB 3.1 Gen 1 (1 Type A, 2 via header(s)); 6 USB 2.0 (2 rear, 4 via header(s))

MBD-X11SAE-M (Workstation)

-Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
-Intel® C236 chipset
-Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
-1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, and 1x 5V PCI 32-bit slots
-Single GbE LAN with Intel® i210-AT,
Single GbE LAN with Intel® i219LM
-8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280/22110)
-6 USB 3.0 (2 rear + 4 via header(s))
6 USB 2.0 (2 rear + 4 via header(s))
2 USB 3.1 (10Gbps, rear)

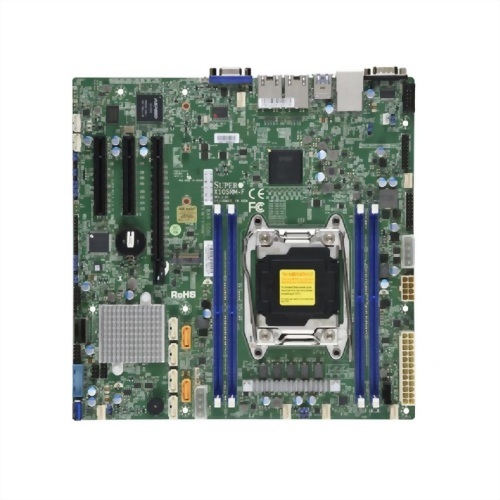

MBD-X10SRM-F (Embedded)

- Single socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600 v4†/ v3 and E5-1600 v4†/ v3 family
- Intel® C612 chipset
- Up to 512GB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz; 4 DIMM slots
- 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8
- Intel® i350 Dual GbE LAN ports
- 10 SATA3 (6Gbps) via C612
- 1 VGA, 2 COM, 1 TPM
- 5 USB 3.0 ports, 6 USB 2.0 ports
- 2 SuperDOM with built-in power
