Name: MBD-X11SSZ-QF (vPro AMT Embedded IPMI)
Brand: 台灣科亞有限公司
SKU: X11SSZ-QF

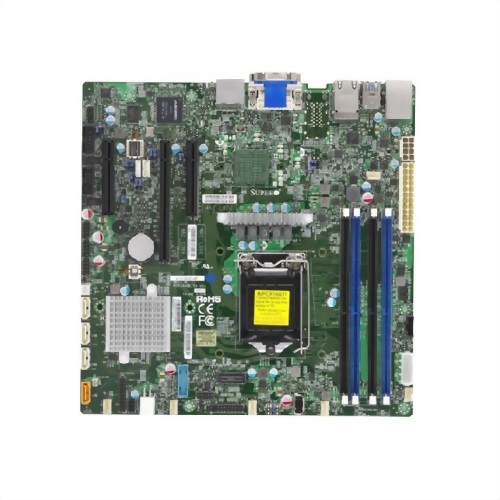

MBD-X11SSZ-QF (vPro AMT Embedded IPMI)

-Single socket H4 (LGA 1151) supports
Intel® 7th/6th Gen. Core i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
-Intel® Q170 Express chipset
-Up to 64GB DDR4 2400MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots
-1 PCI-E 3.0 x16
2 PCI-E 3.0 x4 (in x8 slot)
-Dual GbE LAN w/ Intel i219LM + i210AT
-2 DP, 1 DVI-I, 3 independent displays via Intel HD Graphics, VGA port for BMC
-4 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
-I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
-IPMI, AMT vPro
-Supports 12V DC power input

型號 : X11SSZ-QF

數量 :

Product SKUs

MBD-X11SSZ-QF	X11SSZ-QF


Physical Stats

Form Factor	Micro-ATX
Dimensions	9.6" x 9.6" (24.38cm x 24.38cm)


Processor/Cache

CPU	Intel® 6th Generation Core i3 series Intel® 6th Generation Core i5 series Intel® 6th Generation Core i7 series Intel® 7th Generation Core i3 series Intel® 7th Generation Core i5 series Intel® 7th Generation Core i7 series Intel® Celeron® Intel® Pentium® Single Socket H4 (LGA 1151) supported; CPU TDP support Up to 91W
Note	BIOS version 2.0 or above is required to support 7th Generation Intel® Core Processors


System Memory

Memory Capacity	Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type	2400/2133/1866MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V


On-Board Devices

Chipset	Intel® Q170 Express
SATA	Intel® Q170 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers	Single Intel® PHY I219LM LAN controller Single Intel® Ethernet Controller I210-AT
Audio	ALC 888S HD Audio
Graphics	Intel® HD Graphics, Aspeed AST2400 BMC 3 Independent Displays, VGA is from BMC.


Input / Output

SATA	4 SATA3 (6Gbps) port
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	9 USB 2.0 ports (2 rear, 6 via header(s), 1 Type A) 4 USB 3.0 ports (2 rear, 2 via header(s))
Video Output	2 DP (DisplayPort) port(s), 1 DVI - I port(s), 1 VGA port(s)
Serial Port / Header	2 COM Ports (2 header(s))
TPM	1 TPM 2.0 Header

Expansion Slots

PCI-E	1 PCI-E 3.0 x16 (in x16 slot) 2 PCI-E 3.0 x4 (in x8 slot)


System BIOS

BIOS Type	AMI UEFI
BIOS Features	DMI 2.3 PCI 3.0 Plug and Play (PnP) ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1


Management

Software	AMT IPMI2.0 KVM with dedicated LAN NMI SuperDoctor® 5 vPro Watchdog
Power Configurations	ACPI Power Management Power-on mode for AC power recovery


PC Health Monitoring

Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 1.2V (VDIMM), 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN	6x 4-pin fan headers (up to 6 fans) 6 fans with tachometer status monitoring Fan speed control Overheat LED indication Pulse Width Modulated (PWM) fan connectors PWM fan speed control System level control Thermal control tachometer fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED UID/Remote UID +5V Standby alert LED
Other Features	8-pin 12v DC power connector ACPI power management ATX Power connector Chassis intrusion header Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection Intel Smart Response Technology RoHS System level control UID WOL


Operating Environment

Operating Temperature Range	0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range	10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range	10% ~ 95% (non-condensing)

Single socket H4 (LGA 1151) supports
Intel® 7th/6th Gen. Core i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
Intel® Q170 Express chipset
Up to 64GB DDR4 2400MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots
1 PCI-E 3.0 x16
2 PCI-E 3.0 x4 (in x8 slot)
Dual GbE LAN w/ Intel i219LM + i210AT
2 DP, 1 DVI-I, 3 independent displays via Intel HD Graphics, VGA port for BMC
4 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
IPMI, AMT vPro
Supports 12V DC power input

Parts List (Bulk Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X11SSZ-QF	1	X11SSZ-QF Motherboard
I/O Cables	CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00093-0N	1	Standard I/O Shield for X11SSZ with EMI Gasket

Parts List (Retail Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X11SSZ-QF	1	X11SSZ-QF Motherboard
QRG	MNL-1744-QRG	1	Motherboard Quick Reference Guide
I/O Cables	CBL-0044L	4	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00093-0N	1	Standard I/O Shield for X11SSZ with EMI Gasket

Optional Parts List
Name	Part Number	Qty	Description
1U I/O Shield	MCP-260-00094-0N	--	1U I/O Shield for X11SSZ with EMI Gasket in CSE-512/813
TPM security module	AOM-TPM-9655V AOM-TPM-9655H	--	TPM Module with Infineon 9655, RoHS/REACH,PBF; Vertical or Horizontal
