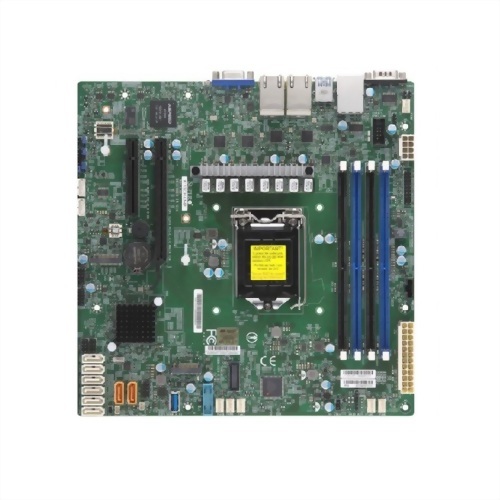

Form Factor
|
|
|
Dimensions
|
-
9.6" x 9.6" (24.38cm x 24.38cm)
|
|
|
|
|
|
CPU
|
-
8th/9th Generation Intel® Corei3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
-
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
|
|
Cores / Cache
|
|
|
Note
|
-
BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core i3/Pentium®/Celeron® Processors
|
|
|
|
|
|
Memory Capacity
|
-
Up to 128GB DDR4 ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
|
|
Memory Type
|
-
2666/2400/2133MHz ECC DDR4 SDRAM 72-bit
|
|
DIMM Sizes
|
|
|
Memory Voltage
|
|
|
Error Detection
|
-
Corrects single-bit errors
|
|
|
|
|
|
Chipset
|
|
|
SATA
|
-
Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
|
IPMI
|
|
|
Network Controllers
|
-
Quad LAN with Intel® Ethernet Controller I210
|
|
Graphics
|
|
|
|
|
|
|
USB
|
-
6x USB 2.0 ports (2 rear, 4 via headers); 2x USB 3.1 Gen2 ports (rear); 3x USB 3.1 Gen1 ports (1 Type-A, 2 via header)
|
|
Video Output
|
|
|
Serial Port / Header
|
-
2 COM Ports (1 rear, 1 header)
|
|
TPM
|
|
|
|
|
|
PCI-E
|
-
1 PCI-E 3.0 x8 (in x16 slot),
-
1 PCI-E 3.0 x8
|
|
M.2
|
-
M.2 Interface: PCI-E 3.0 x4
-
Form Factor: 2280, 22110
-
Key: M-Key
-
Double Height Connector
|
|
|
|
|
|
BIOS Type
|
|
|
BIOS Features
|
-
ACPI 6.0
-
SMBIOS 2.7
-
Plug and Play (PnP)
-
RTC (Real Time Clock) Wakeup
-
UEFI 2.7
-
USB Keyboard support
-
PCI 3.0
|
|
|
|
|
|
Software
|
-
Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
|
Power Configurations
|
-
ACPI Power Management
-
Power-on mode for AC power recovery
|
|
|
|
|
|
Voltage
|
-
+12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
|
|
FAN
|
-
6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
|
|
Temperature
|
|
|
LED
|
-
CPU / System Overheat LED, UID/Remote UID
|
|
Other Features
|
-
ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOL
|
|
|
|
|
|
Operating Temperature Range
|
-
0°C ~ 50°C (32°F ~ 122°F)
|
|
Non-Operating Temperature Range
|
-
-40°C - 70°C (-40°F - 158°F)
|
|
Operating Relative Humidity Range
|
-
8% - 90% (non-condensing)
|
|
Non-Operating Relative Humidity Range
|
-
5% - 95% (non-condensing)
|
|
