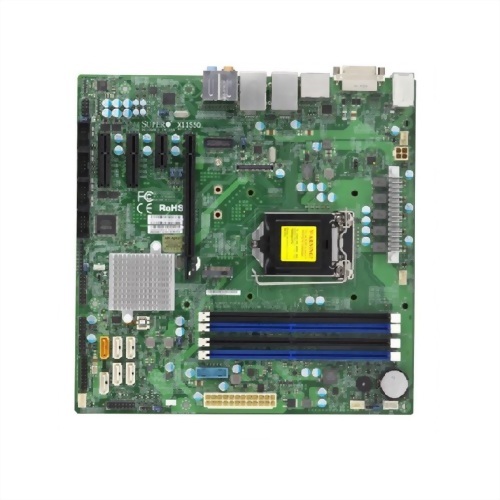

MBD-X11SSQ (vPro AMT Embedded Desktop)

-1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port,3 Independent Displays
-Single socket H4 (LGA 1151) supports
Intel® 7th/6th Gen. Core i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
-1 M.2 PCI-E 3.0 x2, 2242/2260/2280
-Intel® Q170 Express chipset
-Up to 64GB DDR4 2400MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots
-1 PCIe 3.0 x16, 2 PCIe 3.0 x4 (w/ open slots),
1x PCI-E 3.0 x1,
M.2 PCIe 3.0 x2 M Key 2242/60/80
-Dual GbE LAN w/ Intel i219LM + i210AT
-6 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
-1 SATA DOM, 4 COM ports, TPM header, ALC 888S HD Audio 7.1
-AMT, vPro

型號 : X11SSQ

數量 :

Product SKUs

MBD-X11SSQ	X11SSQ


Physical Stats

Form Factor	Micro-ATX
Dimensions	9.6" x 9.6" (24.38cm x 24.38cm)


Processor/Cache

CPU	Intel® 6th Generation Core i3 series, Intel® 6th Generation Core i5 series, Intel® 6th Generation Core i7 series, Intel® 7th Generation Core i3 series, Intel® 7th Generation Core i5 series, Intel® 7th Generation Core i7 series, Intel® Celeron®, Intel® Pentium®. Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 91W
Note	BIOS version 2.0 or above is required to support 7th Generation Intel® Core Processors


System Memory

Memory Capacity	Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type	2400/2133/1866MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V


On-Board Devices

Chipset	Intel® Q170 Express
SATA	Intel® Q170 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Intel RST
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT
Audio	ALC 888S HD Audio
Graphics	Intel® HD Graphics 3 Independent Displays


Input / Output

SATA	6 SATA3 (6Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	8 USB 2.0 ports (4 rear + 4 headers) 4 USB 3.0 ports (2 rear + 2 headers)
Video Output	1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port, 3 Independent Displays
Serial Port / Header	4 COM Ports (4 headers)
TPM	TPM Header
Others	8 bit GPIO, Force On mode by jumper and AC recovery

Expansion Slots

PCI-E	1 PCI-E 3.0 x16, 2 PCI-E 3.0 x4, 1 PCI-E 3.0 x1 M.2 PCI-E x2 M Key 2242/2260/2280, PCI-E 3.0 x4 with open slots
M.2	1 M.2 PCI-E 3.0 x2, 2242/2260/2280


System BIOS

BIOS Type	AMI UEFI
BIOS Features	Plug and Play (PnP) DMI 2.3 USB Keyboard support UEFI 2.3.1 ACPI 5.0 SMBIOS 3.0 PCI 3.0


Management

Software	AMT, NMI, SuperDoctor® 5, vPro, Watchdog
Power Configurations	ACPI Power Management Keyboard Wakeup from Soft-Off Power-on mode for AC power recovery Force Power On by Jumper


PC Health Monitoring

Voltage	+12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 4 -fan status, Chassis intrusion header, Memory, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT
FAN	4x 4-pin fan headers (up to 4 fans), Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors
Temperature	CPU thermal trip support, Adaptive Thermal Monitor, PECI 3.0, Thermal Monitor 2 (TM2) support, PECI
LED	CPU / System Overheat LED, Standby alert LED
Other Features	ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, M.2 NGFF connector, RoHS, System level control, WOL


Operating Environment

Operating Temperature Range	0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range	10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range	10% ~ 95% (non-condensing)

1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port,
3 Independent Displays
Single socket H4 (LGA 1151) supports
Intel® 7th/6th Gen. Core i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
1 M.2 PCI-E 3.0 x2, 2242/2260/2280
Intel® Q170 Express chipset
Up to 64GB DDR4 2400MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots
1 PCIe 3.0 x16, 2 PCIe 3.0 x4 (w/ open slots),
1x PCI-E 3.0 x1,
M.2 PCIe 3.0 x2 M Key 2242/60/80
Dual GbE LAN w/ Intel i219LM + i210AT
6 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
1 SATA DOM, 4 COM ports, TPM header, ALC 888S HD Audio 7.1
AMT, vPro

Parts List (Bulk Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X11SSQ	1	X11SSQ Motherboard
I/O Cables	CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00063-1N	1	Standard I/O Shield for X11SSQ

Parts List (Retail Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X11SSQ	1	X11SSQ Motherboard
QRG	MNL-1793-QRG	1	Motherboard Quick Reference Guide
I/O Cables	CBL-0044L	6	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00063-1N	1	Standard I/O Shield for X11SSQ

Optional Parts List
Name	Part Number	Qty	Description
TPM security module	AOM-TPM-9655V AOM-TPM-9655H	--	TPM Module with Infineon 9655, RoHS/REACH,PBF; Vertical or Horizontal
