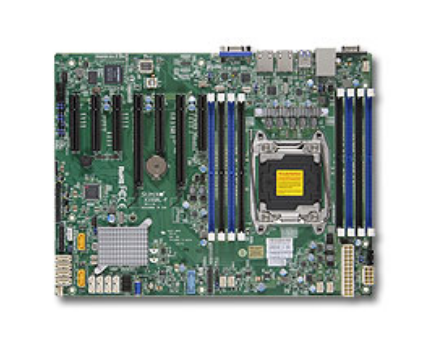

Single socket R3 (LGA 2011) supports：Intel® Xeon® processor E5-2600，v4†/ v3 and E5-1600 v4†/ v3 family，Intel® C612 chipset，Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots，7x PCI-E slots total:2 PCI-E 3.0 x8, 2 PCI-E 3.0 x8 (in x16),2 PCI-E 3.0 x4 (in x8) or 1 x8 + 1 x0，(auto-switch), & 1 PCI-E 2.0 x4 (in x8)
型號 :
MBD-X10SRL-F-B (Bulk Pack)
- 1. Single socket R3 (LGA 2011) supports
- Intel® Xeon® processor E5-2600
- v4†/ v3 and E5-1600 v4†/ v3 family
- 2. Intel® C612 chipset
- 3. Up to 1TB† ECC 3DS LRDIMM , up to
- DDR4- 2400†MHz ; 8x DIMM slots
- 4. 7x PCI-E slots total:
- 2 PCI-E 3.0 x8, 2 PCI-E 3.0 x8 (in x16),
- 2 PCI-E 3.0 x4 (in x8) or 1 x8 + 1 x0
- (auto-switch), & 1 PCI-E 2.0 x4 (in x8)
- 5. Intel® i210 Dual port GbE LAN
- 6. 10x SATA3 (6Gbps) via C612
- 7. 1x VGA, 2x COM, 1x TPM
- 8. 4x USB 3.0 ports, 8x USB 2.0 ports
- 9. 2x SuperDOM with built-in power
