Single socket R3 (LGA 2011) supports，Intel® Xeon® processor E5-2600，v4†/ v3 and E5-1600 v4†/ v3 family，Intel® C612 chipset，Up to 1TB† ECC 3DS LRDIMM , up to，DDR4- 2400†MHz ; 8x DIMM slots，Intel® i350-AM2 Dual port GbE LAN，10x SATA3 (6Gbps) via C612
型號 :

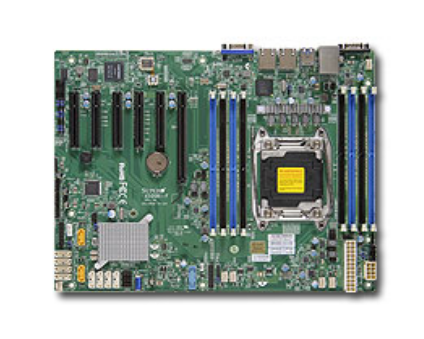

X10SRi-F
1. Single socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600
v4†/ v3 and E5-1600 v4†/ v3 family
2. Intel® C612 chipset
3. Up to 1TB† ECC 3DS LRDIMM , up to
DDR4- 2400†MHz ; 8x DIMM slots
4. 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8),
1 PCI-E 3.0 x16, 1 PCI-E 2.0 x2 (in x8),
1 PCI-E 2.0 x4 (in x8)
5. Intel® i350-AM2 Dual port GbE LAN
6. 10x SATA3 (6Gbps) via C612
7. 1x VGA, 2x COM, 1x TPM
8. 4x USB 3.0 ports, 8x USB 2.0 ports
9. 2x SuperDOM with built-in power
Intel® Xeon® processor E5-2600
v4†/ v3 and E5-1600 v4†/ v3 family
DDR4- 2400†MHz ; 8x DIMM slots
1 PCI-E 3.0 x16, 1 PCI-E 2.0 x2 (in x8),
1 PCI-E 2.0 x4 (in x8)

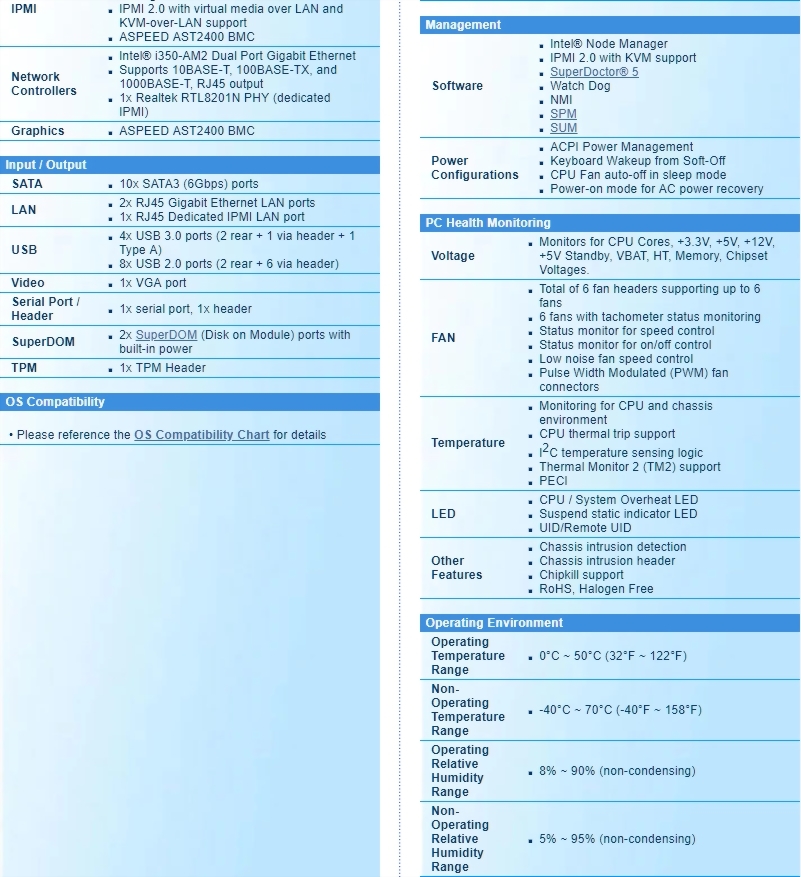

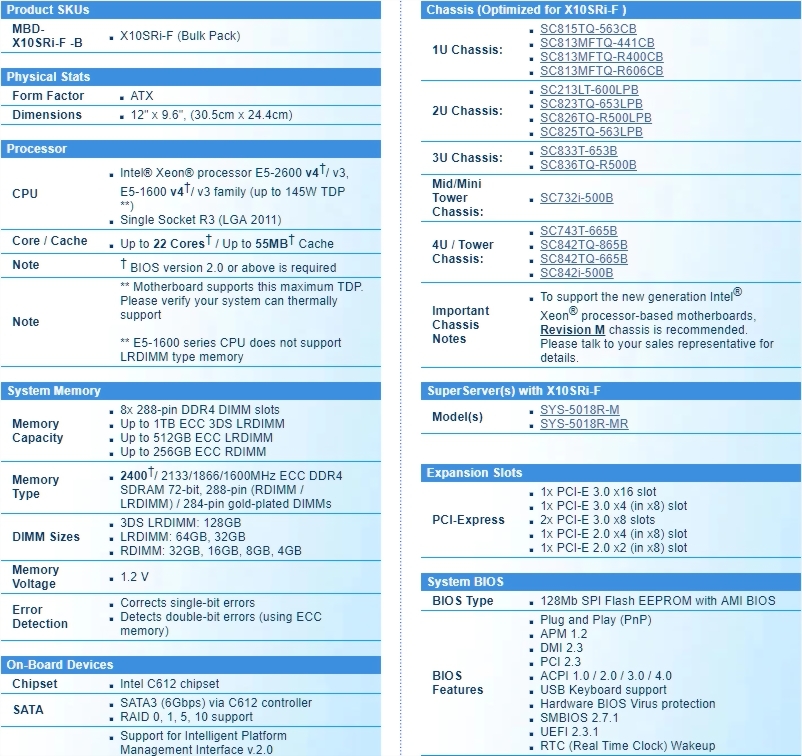

Specifications
Parts List
