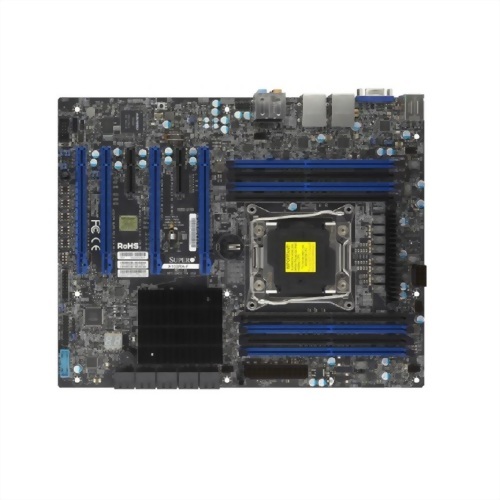

MBD-X10SRA (Workstation)
Single socket R3 (LGA 2011) supports,Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3, Core i7,Intel® C612 chipset,Up to 512GB ECC DDR4 2400†MHz LRDIMM or 128GB ECC/non-ECC UDIMM (available with Core i7 only); 8 DIMM slots
型號 :
X10SRA
-
Single socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3, Core i7 - Intel® C612 chipset
- Up to 512GB ECC DDR4 2400†MHz LRDIMM or 128GB ECC/non-ECC UDIMM (available with Core i7 only); 8 DIMM slots
- 4 PCI-E 3.0 16 (run at 16/16/NA/8 or 16/8/8/8), 2 PCI-E 2.0 1 (in x4)
- Intel® i210-AT Dual port GbE LAN
- 10 SATA3 (6Gbps)
- 1 COM, 1 TPM
- 8 USB 3.0 ports (6 rear + 2 via header)
- HD Audio 7.1 channel connector by Realtek ALC1150
Parts List
| Parts List (Bulk Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X10SRA | 1 | X10SRA Motherboard |
| I/O Shield | MCP-260-00077-0N | 1 | X10SRA/X10SRA-F IO Shield |
| SATA cable | CBL-0044L | 2 | 57.5CM SATA FLAT S-S PBF |
| Parts List (Retail Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-X10SRA | 1 | X10SRA Motherboard |
| I/O Shield | MCP-260-00077-0N | 1 | X10SRA/X10SRA-F IO Shield |
| SATA Cables | CBL-0044L | 6 | 57.5CM SATA FLAT S-S PBF |
| Quick Reference Guide | MNL-1643-QRG | 1 | X10SRA/X10SRA-F Quick Reference Guide |
