SYS-E100-9AP
|
-

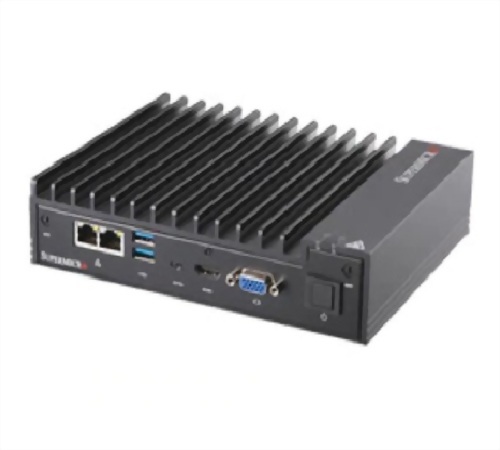

SuperServer E100-9AP (Black)
|
|
|
|
|
|
CPU
|
-
Intel® Atom® Processor E3940
-
FCBGA 1296
-
System-on-Chip
-
CPU TDP support 9W
|
|
|
|
|
|
Memory Capacity
|
-
1x 204-pin DDR3L SO-DIMM socket
|
|
Memory Type
|
-
1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs
|
|
DIMM Sizes
|
|
|
Memory Voltage
|
|
|
|
|
|
|
Network Controllers
|
-
Dual GbE LAN with Intel i210-IT controller
|
|
|
|
|
|
LAN
|
-
2 RJ45 Gigabit Ethernet LAN ports
|
|
USB
|
-
2 USB 3.0 (front)
-
4 USB 2.0 (rear)
|
|
COM Port
|
-
4 COM ports (4 headers); 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
|
|
Video
|
|
|
Others
|
|
|
|
|
|
|
|
Width
|
-
7.68" (195mm) / 9.5" (241mm) - pkg.
|
|
Height
|
-
1.73" (44mm) / 5.5" (140mm) - pkg.
|
|
Depth
|
-
5.94" (151mm) / 8" (203mm) - pkg.
|
|
Available Colors
|
|
|
|
|
|
|
Buttons
|
|
|
LEDs
|
-
Power LED and Hard drive activity LED
|
|
|
|
|
|
PCI-Express
|
-
1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2)
|
|
|
|
|
|
Internal
|
-
1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)
|
|
|
|
|
|
Lockable 12V DC 40W power adapter
|
|
|
|
|
|
BIOS Type
|
-
64Mb SPI Flash EEPROM with AMI UEFI BIOS
|
|
BIOS Features
|
-
Plug and Play (PnP)
-
DMI 2.3
-
ACPI 5.0
-
USB Keyboard support
-
SMBIOS 2.7.1
-
UEFI
|
|
|
|
|
|
Software
|
|
|
Power Configurations
|
-
ACPI Power Management
-
ATX Power connector
-
Control of power-on for recovery from AC power loss
-
CPU thermal trip support for processor protection
|
|
|
|
|
RoHS
|
|
|
Environmental Spec.
|
-
Operating Temperature:
-20°C to 60°C (-4°F to 140°F)
-
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
-
Operating Relative Humidity:
8% to 90% (non-condensing)
-
Non-operating Relative Humidity:
5% to 95% (non-condensing)
-
Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
-
Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms
|
|
