GPU及各種商業應用伺服器

Supermicro 繪圖運算系列:

• 多GPU優化的熱設計, 實現最高性能和可靠性
• 先進的 GPU互連選項, 實現最佳效率和最低延遲
• 領先的 GPU架構, 包括帶NVLink™和NVSwitch™的NVIDIA® HGX-2平台

創新:

• 高度優化的 GPU-to-GPU 互連架構
• 加快部署並讓您安心

最優應用包括:

• AI/機器學習虛擬桌面科學研究3D渲染工廠HPC

產品特色:

Form Factor		Memory		Power
1U，4U機架式		最多24個DIMM插槽，最高6TB DDR4記憶體, Optane™ 持久性記憶體		備用鈦金級（96％）和鉑金級電源效率
Management		Processors		Drives
開放的工業標準IPMI， Redfish APIs，機架規模管理		雙Intel® Xeon® 可擴展處理器，高達205W TDP或雙AMD EPYC™處理器		最多支持16x U.2 NVMe驅動器2.5" 和3.5" SAS3 / SATA3選項
Input/Output
1U最多4個GPU，4U 20個

---

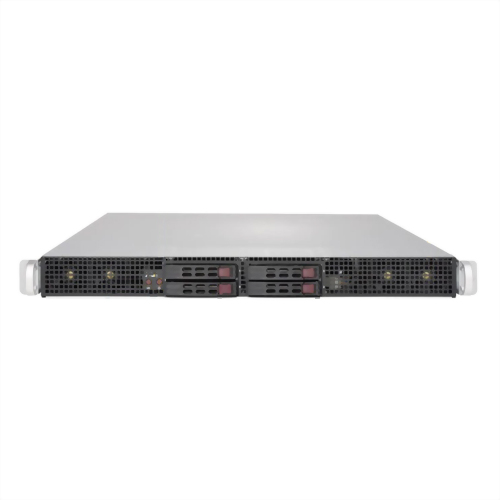

1 U GPU Line

Up to 4 GPUs

NVIDIA® NVLink™ or Dual PCI-E Root Complex

2 Processors

16 / 12 / 8 / 6 DIMM Slots

Up to 2000W Redundant Titanium Level PSU

>>> More

4 U / Tower GPU Line

Up to 20 GPUs

NVIDIA® NVLink™, Single or Dual PCI-E Root Complex

2 Processors

24/16 DIMM Slots

Up to 2200W Redundant Titanium Level PSU

>>> More

產品介紹：

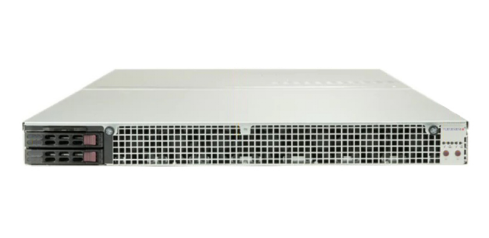

 SYS-1029GQ-TRT

• GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
• Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
• 12 DIMMs; up to 3TB 3DS ECC DDR4‑2933 MHz RDIMM/LRDIM
• Supports Intel® Optane™ DCPMM*
• 2x Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
• 4 PCI-E 3.0 x16 (FHFL) and 2 PCI-E x16 (LP) slots
• 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
• 1 VGA, 2 COM, 2 USB 3.0 (rear)

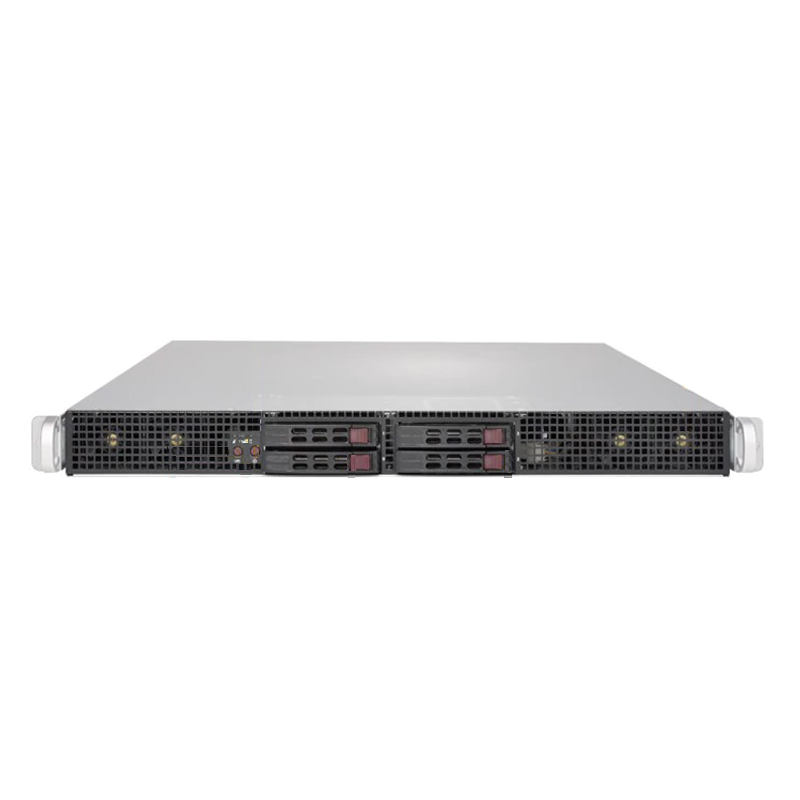

SYS-1028GR-TR  / SYS-1028GR-TRT

• GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 4 Hot-swap 2.5" SATA3 HDD Bays
• 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
• 4 PCI-E 3.0 x16 (3 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
• I/O ports: 2 GbE/10GBase-T (TRT), 1 Video, 1 COM/Serial, 4 USB 3.0 (2 rear, 2 via header), 2 USB 2.0 (2 via header)
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 10 heavy duty fans w/ optimal fan speed control
• 1600W Redundant Platinum Level Power Supplies

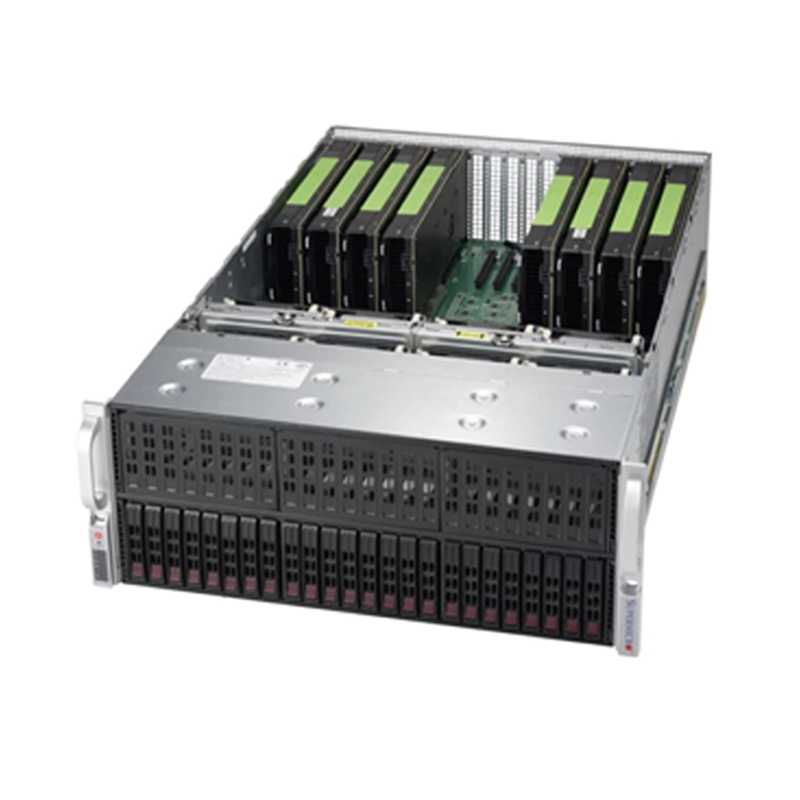

SYS-4028GR-TRT2

• HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 24 Hot-swap 2.5" Drive Bays
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
• 11 PCI-E 3.0 x16 (FH, FL) and 1 PCI-E 3.0 x8 (in x16) slots, Single Root Complex
• 2 GbE (4028GR-TR2)/10GBase-T (4028GR-TRT2), 1 Video, 1 Serial
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 8x 92mm RPM Hot-Swappable Cooling Fans

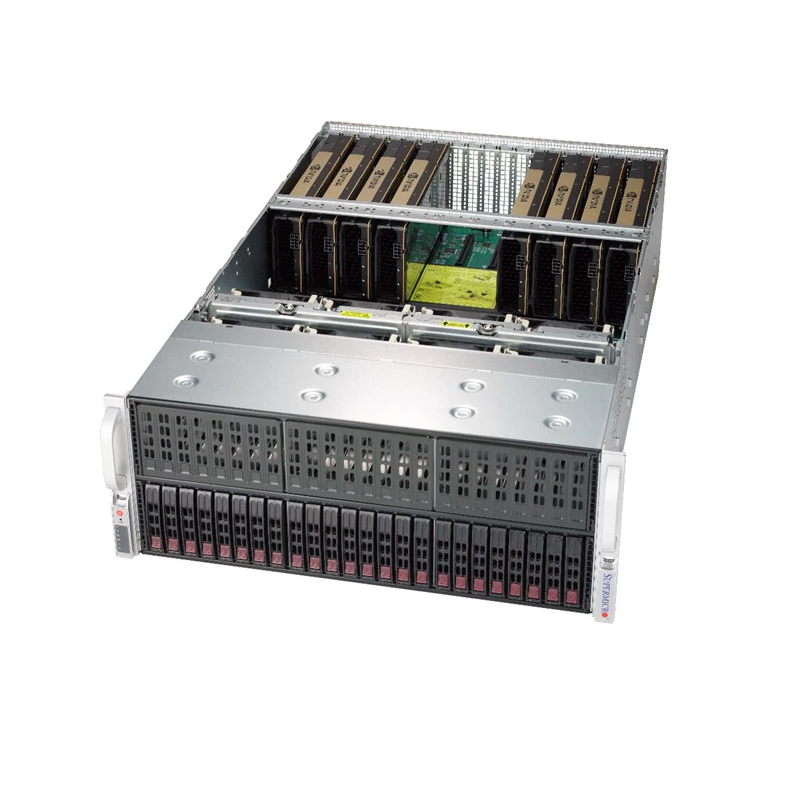

SYS-4029GP-TRT

• 3D rendering, Astrophysics, Chemistry, Cloud Computing, Virtualization, Compute intensive application
• Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• Up to 24 Hot-swap 2.5" Drive Bays, 8x 2.5” drives supported natively
• 24 DIMMs; up to 6TB 3DS ECC DDR4‑2933 MHz RDIMM/LRDIMM
• Supports Intel® Optane™ DCPMM*
• 8 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x8 slots, 1 PCI-E 3.0 x4 slot
• I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 4 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 8x 92mm RPM Hot-Swappable Cooling Fans

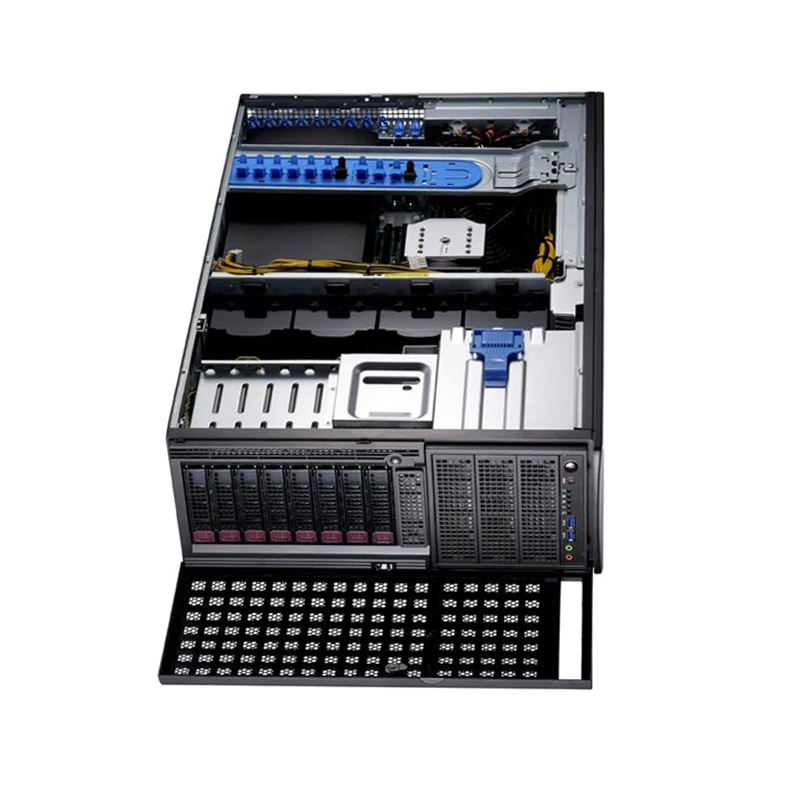

SYS-7049GP-TRT

• GPU Server, Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
• Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
• 16 DIMMs; up to 4TB 3DS ECC DDR4‑2933 MHz RDIMM/LRDIMM
• Supports Intel® Optane™ DCPMM*
• 8 Hot-swap 3.5" drive bays (2 SATA3 ports by default)
• 4 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x16 (single-width), 1 PCI-E x4 (in x8) slots
• 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
• 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0, 7.1 HD Audio
• 4 heavy duty fans, 4 exhaust fans, 2 active heat sinks with optimal fan speed control

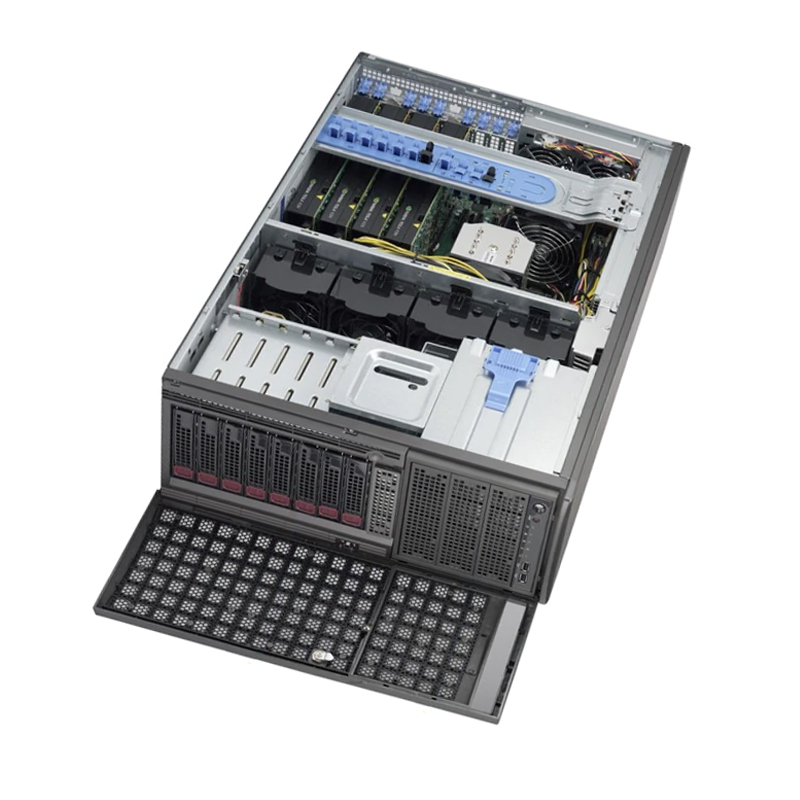

SYS-7048GR-TR

• GPU Server, Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 8 Hot-swap 3.5" SATA HDD Bays, 3 peripheral 5.25" drive bays, 1 fixed 3.5" drive bay
• 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
• 4 PCI-E 3.0 x16 (4 GPU cards opt.), 2 PCI-E 3.0 x8 (1 in x16), and 1 PCI-E 2.0 x4 (in x8) slot
• 2 GbE, 1 Video, 2 COM/Serial, 5 USB 3.0, 4 USB 2.0, 7.1 HD Audio, Thunderbolt Support
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 PWM Middle cooling fans and 2 PWM rear exhaust fans
