Name: SuperServer E100-9AP-IA
Brand: 台灣科亞有限公司
SKU: SYS-E100-9AP-IA

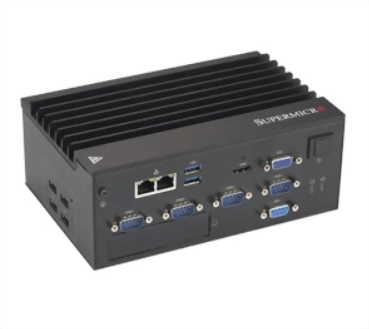

SuperServer E100-9AP-IA

- IoT Gateway for Smart Factory/Building
- Machine Automation
- Industrial Application
- Intel® Atom® Processor E3940, Single Socket FCBGA 1296
- System-on-Chip
- 1 Full size Mini-PCIe, 1 M.2 2280 B-Key for SATA or PCIe SSD
- 1 non-ECC DDR3L SODIMM; up to 8GB
- Dual GbE LAN ports via Intel I210-IT
- 1 HDMI, 1 VGA, 2 USB 3.0, 4 USB 2.0
- 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control, 1 DIO via DB9
- Fanless design
- 12V DC 60W power adapter with Terminal Block, support 9-36V DC-in

型號 : SYS-E100-9AP-IA

數量 :

Product SKUs

SYS-E100-9AP-IA	SuperServer E100-9AP-IA (Black)


Motherboard

Super A2SAN-E


Processor/Cache

CPU	Intel® Atom® Processor E3940 FCBGA 1296 System-on-Chip CPU TDP support 9W


System Memory

Memory Capacity	1x 204-pin DDR3L SO-DIMM socket
Memory Type	1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB
Memory Voltage	1.35 V


On-Board Devices

SATA	SoC controller for 1 SATA3 (6Gbps)
Network Controllers	Dual GbE LAN with Intel i210-IT controller


Input / Output

LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	2 USB 3.0 (front) 4 USB 2.0 (side)
COM Port	2 RS232, 2 RS232/422/485, RS-485 supports auto flow control 1 DIO via DB9
Video	1 VGA, 1 HDMI


Chassis

Form Factor	3.5" SBC
Model	CSE-E101-IA


Dimensions

Width	7.64" (194mm) / 9.5" (241mm) - pkg.
Height	3.15" (80mm) / 5.5" (140mm) - pkg.
Depth	4.96" (126mm) / 8" (203mm) - pkg.
Weight	Gross Weight: 3.97 lbs (1.8 kg) Net Weight: 3.31 lbs (1.5 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button
LEDs	Power LED and Hard drive activity LED


Expansion Slots

PCI-Express	1 Full size Mini-PCIe (USB 2.0/PCIe) 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)


Drive Bays

Internal	1 SATA SSD (SATA3)


System Cooling

Fans	Fan-less design


Power Supply

12V DC 60W power adapter with Terminal Block


System BIOS

BIOS Type	64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features	Plug and Play (PnP) DMI 2.3 ACPI 5.0 USB Keyboard support SMBIOS 2.7.1 UEFI


Management

Software	SuperDoctor® 5 Watch Dog
Power Configurations	ACPI Power Management ATX Power connector Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: -20°C to 60°C (-4°F to 140°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Operational Vibration	IEC 60068-2-64, 5 Grms, randon, 5-500 Hz, 1hr/axis
Operational Shock	IEC 60068-2-27, 30G, half sine, 11ms

- IoT Gateway for Smart
- Factory/Building
- Machine Automation
- Industrial Application

1. Intel® Atom® Processor E3940,
Single Socket FCBGA 1296
2. System-on-Chip
3. 1 Full size Mini-PCIe
1 M.2 2280 B-Key for SATA or PCIe SSD
4. 1 non-ECC DDR3L SODIMM; up to 8GB
5. Dual GbE LAN ports via Intel I210-AT
6. 1 HDMI, 1 VGA, 2 USB 3.0, 4 USB 2.0
7. 2 RS232, 2 RS232/422/485, RS-485
supports auto flow control, 1 DIO via DB9
8. Fanless design
9. 12V DC 60W power adapter with Terminal
Block, support 9-36V DC-in

Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-A2SAN-E CSE-E101-IA	1 1	Super A2SAN-E Motherboard Fanless 3.5" SBC embedded chassis
Power Adapter	MCP-250-10125-0N	1	60W 12V 3.33A, AC to DC power adapter w/ terminal block (0-40°C)


Optional Parts List

	Part Number	Qty	Description
mSATA 128GB	HDS-MTM-THNSNH128GMCT	-	Toshiba mSATA 128GB MLC
mSATA 256GB	HDS-MTM-THNSNH256GMCT	-	Toshiba mSATA 256GB MLC
