Product SKUs SYS-7049GP-TRT SuperServer 7049GP-TRT (Black)   Motherboard Super X11DPG-QT   Processor/Cache CPU Dual Socket P (LGA 3647) 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)‡, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W Cores Up to 28 Cores Note ‡ BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors GPU Support Please refer to: Compatible GPU list   System Memory Memory Capacity 16 DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM†† Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.   On-Board Devices Chipset Intel® C621 chipset SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 Network Controllers Intel® X550 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Graphics ASPEED AST2500 BMC   Input / Output SATA 10 SATA3 (6Gbps) ports LAN 2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port USB 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) 4 USB 2.0 ports (2 rear, 2 via headers) Video 1 VGA port Audio 7.1 HD Jacks Serial Port/Header 2 COM ports (1 rear, 1 Header)   System BIOS BIOS Type AMI 32Mb SPI Flash ROM   Management Software Intel® Node Manager IPMI 2.0 SSM, SPM, SUM SuperDoctor® 5   PC Health Monitoring CPU Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors

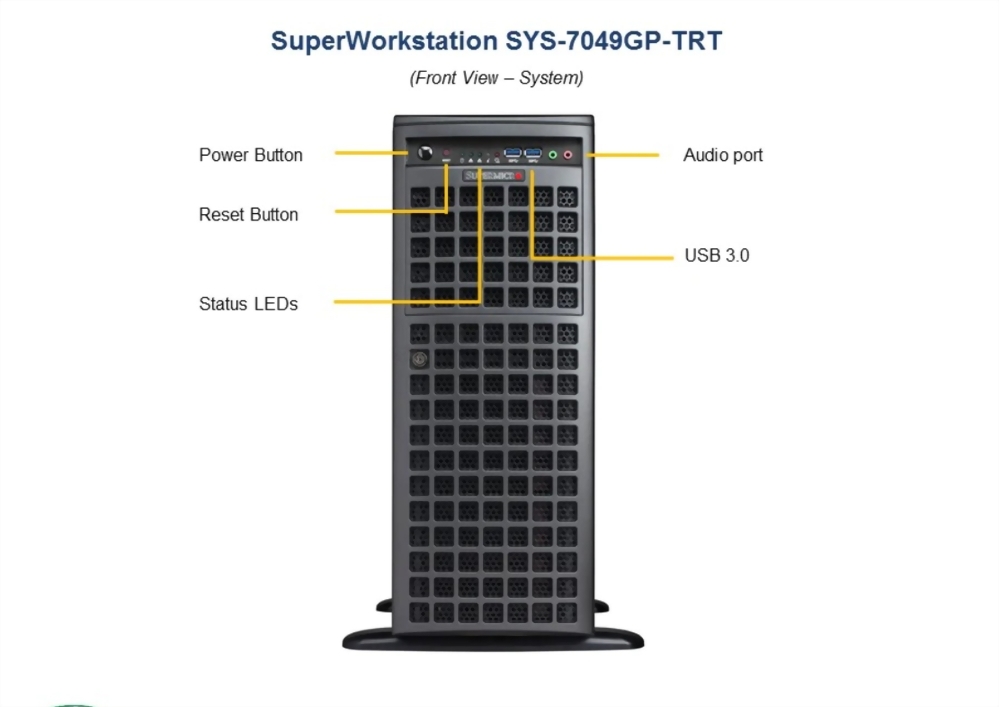

Chassis Form Factor 4U Rackmountable / Tower Optional Rackmount Kit Model CSE-747BTS-R2K20BP   Dimensions and Weight Height 18.2" (462mm) Width 7.0" (178mm) Depth 26.5" (673mm) Package 27" (H) x 13" (W) x 38" (D) Weight Net Weight: 46 lbs (20.9 kg) Gross Weight: 62 lbs (28.1 kg) Available Colors Dark Gray   Front Panel Buttons Power On/Off button System Reset button LEDs Power status LED Hard drive activity LED Network activity LEDs System Overheat & Power Fail LED Ports 2 Front USB 3.0 Ports   Expansion Slots PCI-Express 4 PCI-E 3.0 x16 (double-width) slots 2 PCI-E 3.0 x16 (single-width) slots 1 PCI-E 3.0 x4 (in x8 slot)   Drive Bays / Storage Hot-swap 8 Hot-swap 3.5" drive bays Optional 4x 2.5" NVMe supported M.2 1 NVMe based M.2 SSD Form Factors: 2280, 22110   System Cooling Fans 4 Heavy duty fans 2 Rear exhaust fans 2 Optional Rear fans (required for Passive GPUs) Heatsink 2 Active heatsink with optimal fan speed control   Power Supply 2200W Redundant Power Supplies with PMBus Total Output Power and Input 1200W with Input 100-127Vac 1800W with Input 200-220Vac 1980W with Input 220-230Vac 2090W with Input 230-240Vac 2200W with Input 220-240Vac (for UL/cUL use only) 2090W with Input 230-240Vdc (for CCC only) AC Input Frequency 50-60Hz Dimension (W x H x L) 76 x 40 x 336 mm +12V Max: 100A / Min: 0A (100-127Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 174.17A / Min: 0A (230-240Vac) Max: 183.3A / Min: 0A (220-240Vac) 5VSB Max: 1A / Min: 0A Output Type Backplanes (gold finger) Certification   Titanium Level   [ Test Report ]   Operating Environment RoHS RoHS Compliant Environmental Spec. Operating Temperature:    10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature:    -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity:    8% to 90% (non-condensing) Non-operating Relative Humidity:    5% to 95% (non-condensing)

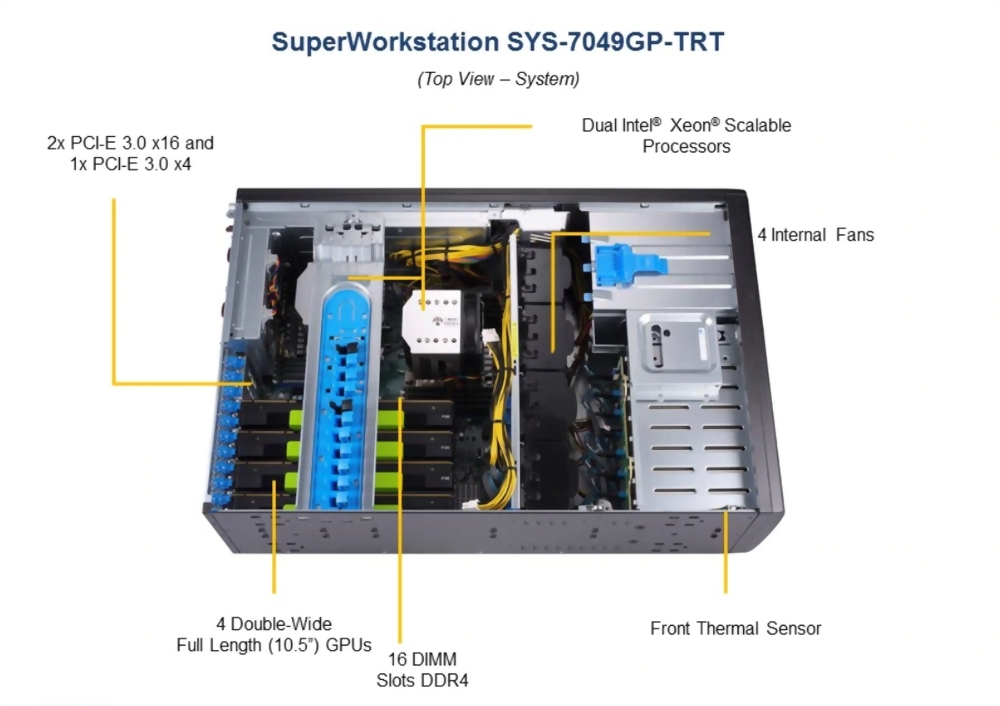

1. Dual Socket P (LGA 3647) support
    2nd Gen. Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
2. 16 DIMMs; up to 4TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 4 PCI-E 3.0 x16 (double-width) slots,
    2 PCI-E 3.0 x16 (single-width) slots,
    1 PCI-E 3.0 x4 (in x8) slot
4. 8 Hot-swap 3.5" drive bays

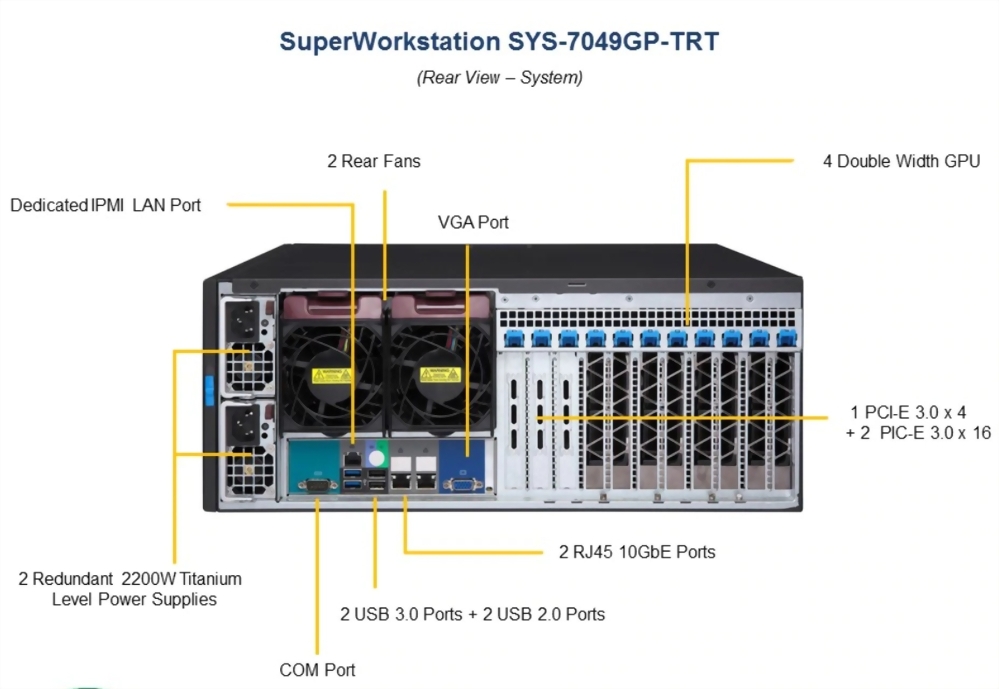

5. 2x 10GBase-T LAN ports via Intel X550
6. 1 VGA, 2 COM, 5 USB 3.0
7. 4 Heavy duty fans, 4 exhaust fans,
    and 2 active heatsink with optimal
    fan speed control
8. 2200W Redundant Power Supplies
    Titanium Level (96%)
9. GPU Kit for passive GPU/Coprocessor
    support (MCP-320-74702-0N-KIT)
