SuperServer 4029GP-TRT

Product SKUs SYS-4029GP-TRT SuperServer 4029GP-TRT (Black)   Motherboard Super X11DPG-OT-CPU   Processor/Cache CPU Dual Socket P (LGA 3647) 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)‡, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W Cores Up to 28 Cores Note ‡ BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors GPU Support Please refer to: Compatible GPU list   System Memory Memory Capacity 24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM†† Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.   On-Board Devices Chipset Intel® C622 chipset SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10 Network Controllers Dual Port 10GbE from C622 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Graphics ASPEED AST2500 BMC   Input / Output SATA 10 SATA3 (6Gbps) ports LAN 2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port USB 4 USB 3.0 ports (rear) Video 1 VGA Connector COM Port 1 COM port (header)   System BIOS BIOS Type AMI 32Mb SPI Flash ROM   Management Software Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog   PC Health Monitoring CPU Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis Form Factor 4U Rackmountable Rackmount Kit (MCP-290-00057-0N) Model CSE-418GTS-R4000BP2   Dimensions Height 7.0" (178mm) Width 17.2" (437mm) Depth 29" (737mm) Weight Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg) Available Colors Black   Drive Bays / Storage Hot-swap Up to 24x 2.5" SAS/SATA drive bays 8x 2.5" SATA supported natively 2x 2.5" NVMe supported natively M.2 1 NVMe based M.2 SSD Form Factors: 2260, 2280, 22110   Expansion Slots PCI-Express 8 PCI-E 3.0 x16 (double-width) slots 2 PCI-E 3.0 x8 slots 1 PCI-E 3.0 x4 slot   System Cooling Fans 8 Hot-swap 92mm cooling fans   Power Supply 2000W Redundant Power Supplies with PMBus Total Output Power 1000W: 100 – 120Vac 1800W: 200 – 220Vac 1980W: 220 – 230Vac 2000W: 230 – 240Vac 2000W: 200 – 240Vac (UL/CUL only) Dimension (W x H x L) 73.5 x 40 x 265 mm Input 100-120Vac / 12.5-9.5A / 50-60Hz 200-220Vac / 10-9.5A / 50-60Hz 220-230Vac / 10-9.8A / 50-60Hz 230-240Vac / 10-9.8A / 50-60Hz 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) +12V Max: 83.3A / Min: 0A (100-120Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 166.7A / Min: 0A (230-240Vac) Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) 12Vsb Max: 2.1A / Min: 0A Output Type 25 Pairs Gold Finger Connector Certification   Titanium Level   [ Test Report ]   Operating Environment RoHS RoHS Compliant Environmental Spec. Operating Temperature:    10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature:    -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity:    8% to 90% (non-condensing) Non-operating Relative Humidity:    5% to 95% (non-condensing)

 - 3D Rendering
  - Astrophysics, Chemistry
  - Cloud and Virtualization needs
  - Cloud Computing
  - Compute Intensive Application
  - Dual Root System for balanced
     performance & higher CPU to GPU
     communication

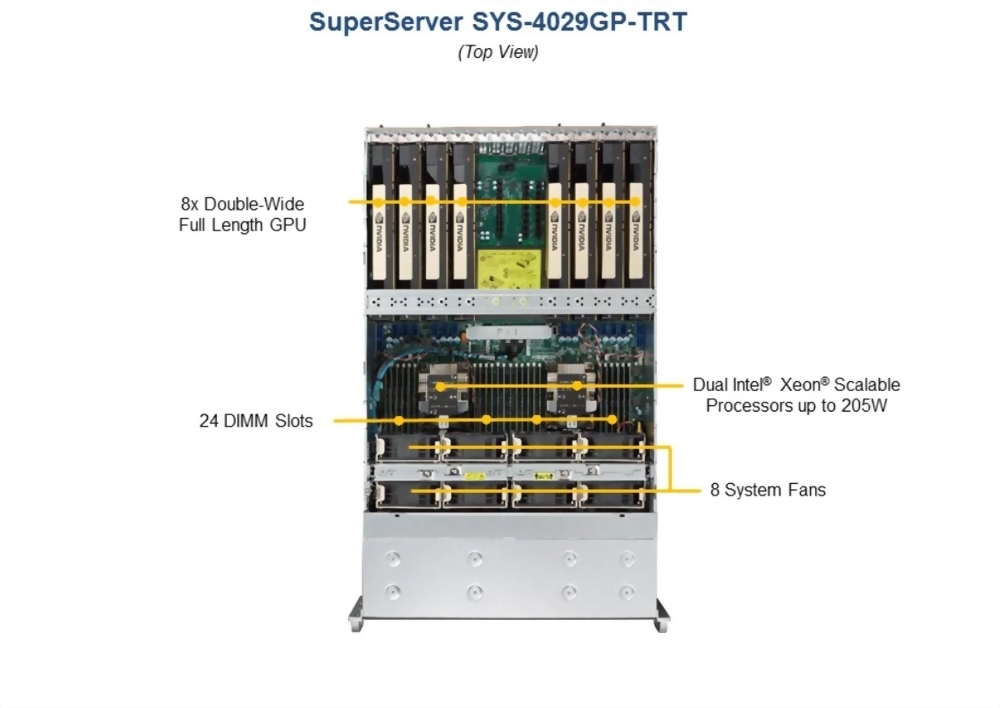

1. Dual Socket P (LGA 3647) support,2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)^‡
2. 24 DIMMs; up to 6TB 3DS ECC,DDR4-2933MHz^† RDIMM/LRDIMM,Supports Intel® Optane™ DCPMM^††
3. 8 PCI-E 3.0 x16 slots (support up to 8 double width GPU),2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4
4. Up to 24 Hot-swap 2.5" drive bays;8x 2.5" SAS/SATA drives supported with included H/W, 2x 2.5" NVMe
    drives supported with included H/W,1 NVMe based M.2 SSD
5. 2x 10GBase-T LAN ports via Intel C622
6. 8 Hot-swap 92mm RPM cooling fans
7. 2000W (2+2) Redundant Power Supplies
     Titanium Level (96%+)
