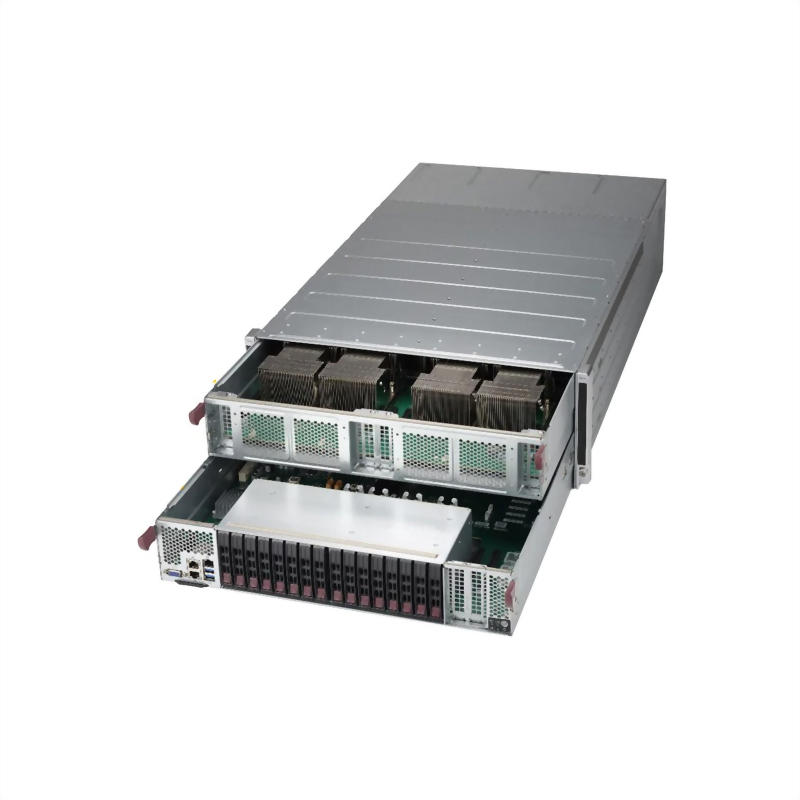

SuperServer 4028GR-TXRT

- Up to 8 NVIDIA® Tesla® P100 SXM2
- Up to 80 GB/s GPU-to-GPU NVIDIA® NVLINK™
- Supports NVIDIA® GPUDirect™ RDMA

型號 : SYS-4028GR-TXRT

數量 :

Product SKUs

SYS-4028GR-TXRT	SuperServer 4028GR-TXRT (Black)


Motherboard

Super X10DGO-T


Processor/Cache

CPU	Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores† / Up to 55MB† Cache
System Bus	QPI up to 9.6 GT/s
Note	† BIOS version 2.0 or above is required
Note	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

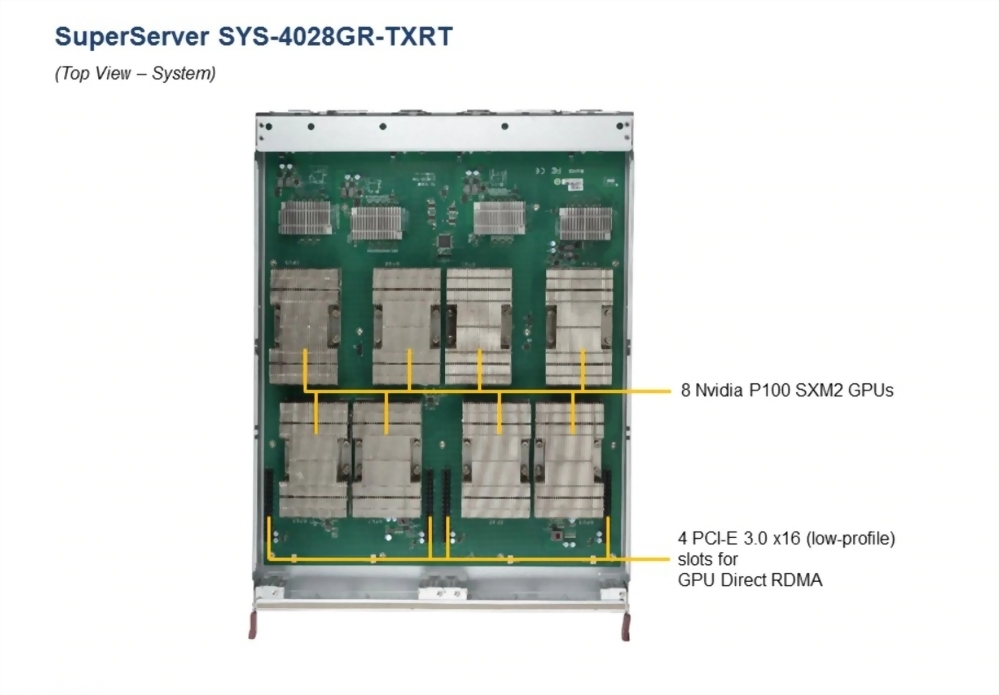

GPU	8 NVIDIA® Tesla® P100 SXM2 NVIDIA® NVLINK™ up to 80GB/s


System Memory

Memory Capacity	24x 288-pin DDR4 DIMM slots Up to 3TB† ECC 3DS LRDIMM, 2TB ECC RDIMM
Memory Type	2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C612 chipset
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Dual Port 10GbE with Intel X540 Ethernet Controller Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	ASPEED AST2400 BMC


Input / Output

SATA	10 SATA3 (6Gbps) ports
LAN	2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports
Video	1 VGA Connector
Serial Port	1 Serial header


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 USB Keyboard support SMBIOS 2.7.1 UEFI

Chassis

Form Factor	4U Rackmountable Rackmount Kit (MCP-290-31401-0N)
Model	CSE-R422BG-2


Dimensions

Height	7.0" (178mm)
Width	17.6" (447mm)
Depth	31.7" (805mm)
Weight	Net Weight: 80 lbs (36.2 kg) Gross Weight: 135 lbs (61.2 kg)
Available Colors	Black


Drive Bays

Hot-swap	16 Hot-swap 2.5" SATA/SAS drive bays


Expansion Slots

PCI-Express	4 PCI-E 3.0 x16 (low-profile) slots 2 PCI-E 3.0 x8 slots
M.2	M.2 Interface: PCI-E 3.0 x4 Form Factor: 2260, 2280, 22110


System Cooling

Fans	8x 92mm Cooling Fans
Shrouds	1 Air Shroud (MCP-310-41808-0B)


Power Supply

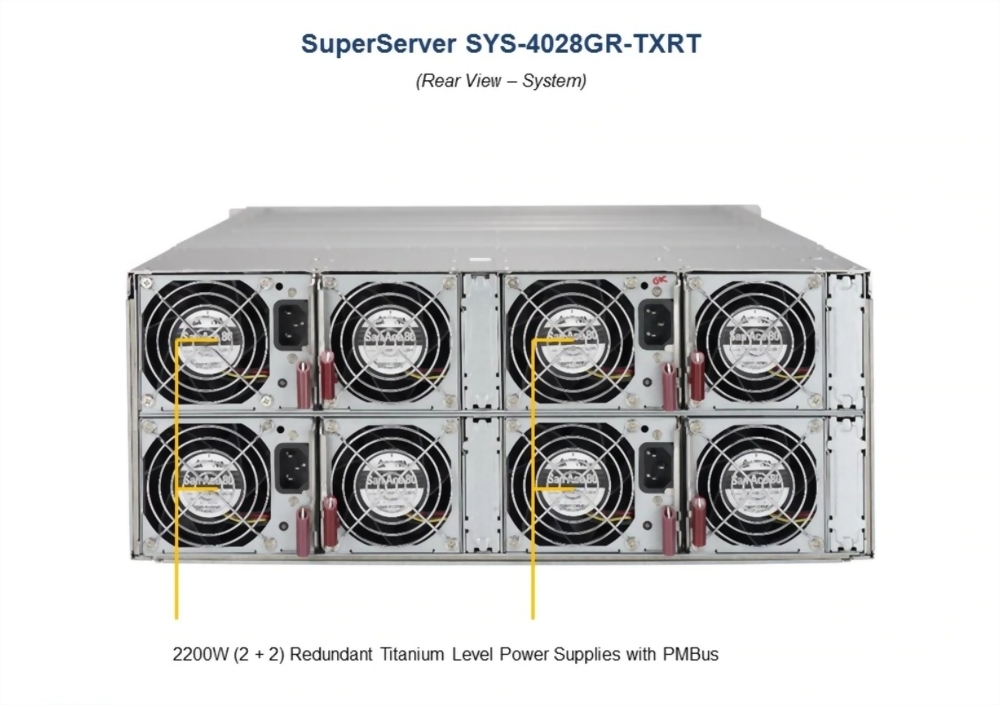

2200W Redundant Titanium Level Power Supplies with PMBus
Total Output Power	1200W/1800W/1980W/2090W/2200W (UL/cUL only)
Dimension (W x H x L)	106.5 x 82.4 x 203.5 mm
Input	1200W: 100-127 Vac / 14-11 A / 50-60 Hz 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only) 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only) 2090W: 230-240 Vdc / 10-9.8 A (CCC only)
+12V	Max: 100A / Min: 0A (1200W) Max: 150A / Min: 0A (1800W) Max: 165A / Min: 0A (1980W) Max: 174.17A / Min: 0A (2090W) Max: 183.3A / Min: 0A (2200W) Max: 174.17A / Min: 0A (2090W)
12Vsb	Max: 2A / Min: 0A
Output Type	Gold Finger (connector on M/P)
Certification	Titanium Level [ Test Report ]


PC Health Monitoring

CPU	Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN	4-pin fan headers with tachometer status monitoring Low noise fan speed control mode
Temperature	Monitoring for CPU and system environment Thermal Control for 8 fan connectors
Other Features	Chassis intrusion detection


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

- Up to 8 NVIDIA® Tesla® P100 SXM2
- Up to 80 GB/s GPU-to-GPU NVIDIA® NVLINK™
- Supports NVIDIA® GPUDirect™ RDMA

1. Dual socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600
  v4^†/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB^† ECC 3DS LRDIMM , up to
DDR4- 2400^†MHz ; 24 DIMM slots

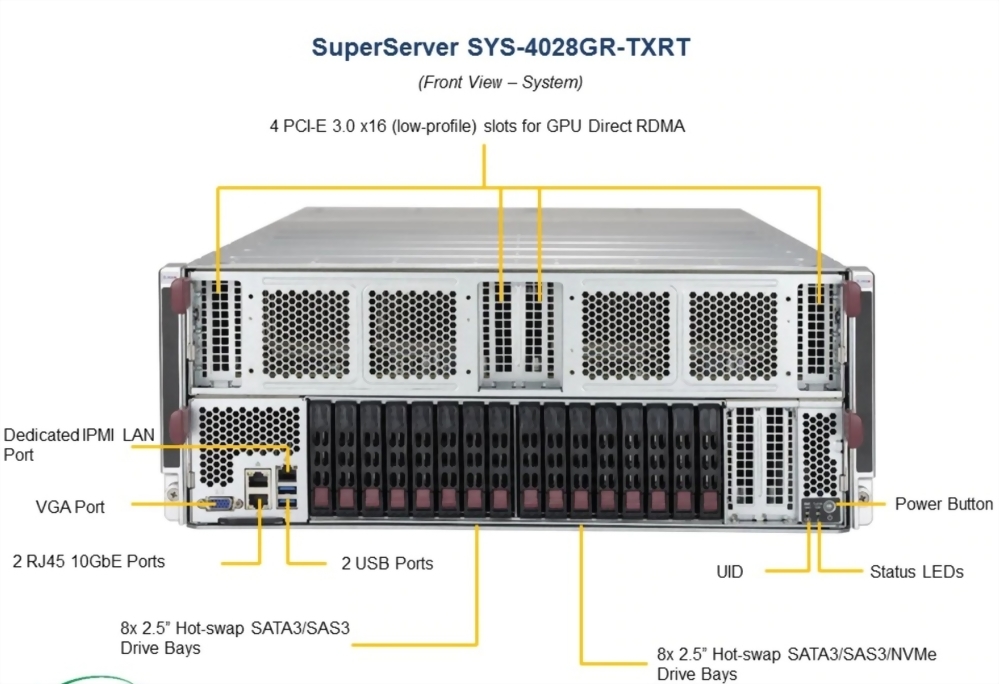

3. 4 PCI-E 3.0 x16 (low-profile) slots
2 PCI-E 3.0 x8 (low-profile) slots
  M.2 Interface: PCI-E 3.0 x4
  M.2 Form Factor: 2260, 2280, 22110
4. Dual 10GBase-T LAN with Intel® X540
5. 16 Hot-swap 2.5" SATA/SAS drives;
Supports 8 NVMe drives
6. 8x 92mm cooling fans
7. 2200W Redundant (2+2) Power
Supplies; Titanium Level (96%+)

Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X10DGO-T MBD-X10DGO-SXM-P CSE-R422BG-2	1 1 1	Super X10DGO-T Motherboard P100 SXM2 GPU Board CSE-R422BG-2 Chassis
Backplane	BPN-MB-R422	1	Pascal 4U midplane, 2U Pascal node on top, and 2U CPU node on bottom. Support 8x fan/power module at rear side.,RoHS
Backplane	BPN-SAS3-213A-N8	1	16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
Cable 1	CBL-0449L	2	HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG
Cable 2	CBL-PWCD-0174-IS	4	PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH
Cable 3	CBL-PWEX-0979	3	2X4F/GPU-White/P4.2 to TWO 1X4F/P5.08, (5,12V),48/51CM,18AWG
Cable 4	CBL-SAST-0550	2	MINI SAS HD,12G,INT,25CM,30AWG
Cable 5	CBL-SAST-0819	2	OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
Cable 6	CBL-SAST-0974-1	2	OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG
Parts	MCP-220-42204-0N-PACK	1	Single pack R422BG 2U GPU tray (2U, 8 Pascal / Volta GPU),Ro
Power Supply	PWS-2K21A-2R	4	2U 2200W 90-264VAC/47-63Hz, or wide DC input 180Vdc~300Vdc,
Power Supply	PWS-DF004-1F	4	12Vdc input redundant FAN module power supports I2C function
Heatsink / Retention	SNK-P0048AP4	2	2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32
Heatsink / Retention	SNK-P4001P	8	2U Passive GPU Heat Sink for NVIDIA SXM2 Module in SYS-4028GR-TXR/TXRT Series Servers
Heatsink / Retention	SNK-P4003P	8	2U Passive GPU Heat Sink for NVIDIA Pascal and Volta GPUs in SYS-4028GR-TXR/TXRT Series Servers


Optional Parts List

	Part Number	Qty	Description
Global Services & Support	OS4HR3/2/1 OSNBD3/2/1	- -	3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service
Software	SFT-OOB-LIC	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)

Optional NVMe Kit

NVMe AOC	AOC-SLG3-4E2P-O	1	4 port PLX NVMe PCIe x8 card,HF,RoHS. Support up to 4 NVMe drives
Cable	CBL-SAST-0974-1	4	OCuLink v.1.0,INT,x4,PCIe,37 CM,RoHS
NVMe drive Tray	MCP-220-00121-0B	4	Black Gen-3 2.5" NVMe drive tray, Orange tab with lock
