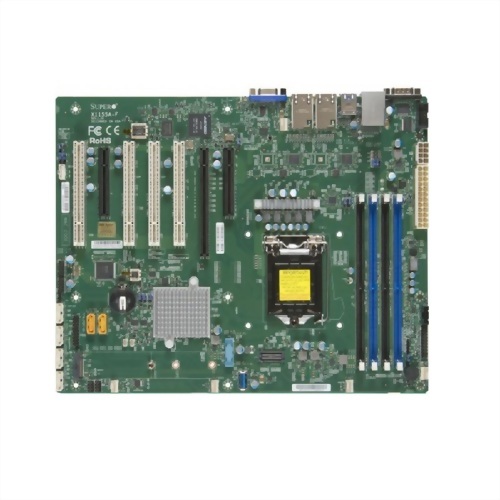

MBD-X11SSA-F

• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,
  Intel® Celeron® and Intel® Pentium®
• Intel® C236 chipset
• Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
• Expansion slots:
  1 PCI-E 3.0 x8 (in x16),
  1 PCI-E 3.0 x8,
  1 PCI-E 3.0 x4 (in x8)
  4 5V PCI 32-bit slots
• Dual GbE LAN with Intel® i210-AT
• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
• I/O: 1 VGA, 2 COM, TPM header
• 2 SuperDOM with built-in power
• 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
• M.2 NGFF connector
  M.2 Interface: PCI-E 3.0 x4 and SATA
  Form Factor: 2242, 2260, 2280, 22110
  Key: M-Key
  Double Height Connector
