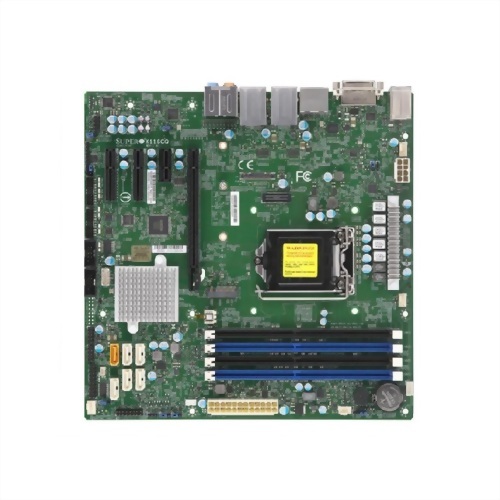

MBD-X11SCQ (High Performance vPro AMT 2666MHz DDR4)

• Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
• Intel® Q370
• Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
• 1 PCI-E 3.0 x16,
  1 PCI-E 3.0 x1,
  2 PCI-E 3.0 x4
  M.2 Interface: 1 PCI-E 3.0 x4
  M.2 Form Factor: 2242/2280/22110
  M.2 Key: M-Key
• 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
  3 Independent Displays
• Intel® Q370 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Single LAN with Intel® Ethernet Controller I210-AT
  Single LAN with Intel® PHY I219LM LAN controller
