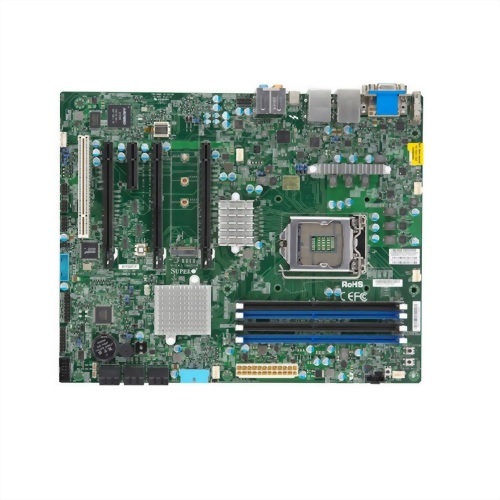

MBD-X11SAT-F (Workstation)

• Single socket H4 (LGA 1151) supports
  Intel® Xeon® processor E3-1200 v5/v6,
  Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
  Intel® Celeron® and Intel® Pentium®
• Intel® C236 chipset
• Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
• 3 PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1 PCI-E 3.0 x1 (in x4), and 1 5V PCI 32-bit slots
• Single GbE LAN with Intel® i210-AT,
  Single GbE LAN with Intel® i219LM
• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
• I/O: 1 VGA, 1 COM, TPM header
• 6 USB 3.0 (2 rear + 4 via header(s)) ,
  4 USB 2.0 (2 rear + 2 via header(s)),
  1 USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port)
• M.2 NGFF connector
