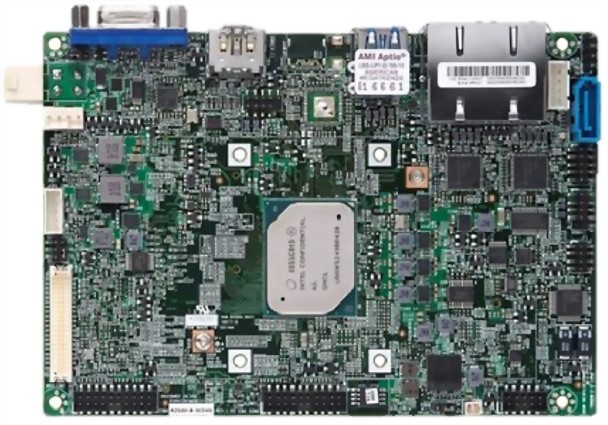

Form Factor
|
|
|
Dimensions
|
-
5.7" x 4.0" (14.6cm x 10.16cm)
|
|
|
|
|
|
CPU
|
-
Intel® Atom® Processor E3940.
-
Single Socket FCBGA1296 supported, CPU TDP support 9.5W
|
|
Cores / Cache
|
-
4 cores, 4 threads / 2MB L2 cache
|
|
|
|
|
|
Memory Capacity
|
-
Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1866MHz, in 1 DIMM slot
|
|
Memory Type
|
|
|
DIMM Sizes
|
|
|
Memory Voltage
|
|
|
|
|
|
|
Chipset
|
|
|
SATA
|
-
SoC controller for 1 SATA3 (6 Gbps) ports;
|
|
Network Controllers
|
-
Dual LAN with Intel® Ethernet Controller I210IT
|
|
Audio
|
|
|
Graphics
|
|
|
|
|
|
|
SATA
|
|
|
LAN
|
-
2 RJ45 Gigabit Ethernet LAN ports
|
|
USB
|
-
4 USB 2.0 ports (4 headers),
-
2 USB 3.0 ports (2 rear)
|
|
Video Output
|
-
1 VGA port, 1 48-bit LVDS port, 1 HDMI port
|
|
Serial Port / Header
|
-
4 COM Ports (4 headers), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
|
|
TPM
|
|
|
Others
|
-
1 HD Audio header (Mic-in/Headphone-out)
-
1 8-bit GPIO header
-
1 SMbus header
-
1 Panel backlight power header
-
1 Speaker
-
1 System Fan
|
|
|
|
|
PCI-E
|
-
1 x Full size Mini-PCI-E (USB2.0 x 1,PCI-E Gen2 x 1)
-
1 x M.2 2280 B-Key for SATA or PCI-E SSD (2242/3042 B-key M.2 module is supported by extender bracket)
|
|
M.2
|
-
M.2 Interface: SATA and PCI-E 2.0 x1 and USB 2.0
-
Form Factor: 2280
-
Key: B-Key
|
|
|
|
|
|
Software
|
|
|
Power Configurations
|
-
+12V DC Power Input
-
ACPI Power Management
-
Control of power-on for recovery from AC power loss
-
Force Power On by Jumper
|
|
|
|
|
|
Voltage
|
-
+1.35V, +12V, +3.3V, +5V, 3.3V standby, System level control, System temperature, VBAT, VCGI
|
|
FAN
|
-
1x 4-pin fan header (up to 1 fan), Fan speed control, Low noise fan speed control, PWM fan speed control, System level control, Thermal control tachometer fan connectors
|
|
Temperature
|
|
|
LED
|
|
|
Other Features
|
-
4-pin 12v DC power connector, ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, System level control, WOL
|
|
|
|
|
|
Operating Temperature Range
|
-
-30°C ~ 75°C (-22°F ~ 167°F)
|
|
Non-Operating Temperature Range
|
-
-40°C - 85°C (-40°F - 185°F)
|
|
Operating Relative Humidity Range
|
-
8% - 90% (non-condensing)
|
|
Non-Operating Relative Humidity Range
|
-
10% ~ 95% (non-condensing)
|
|
