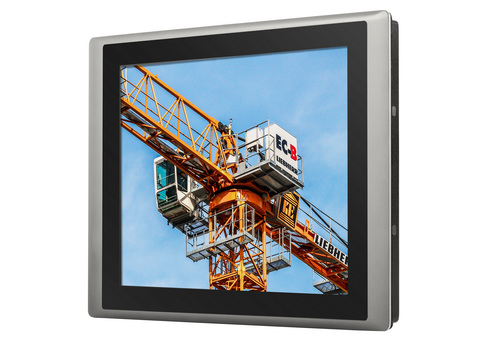

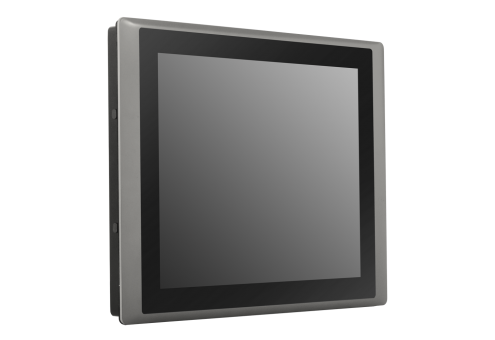

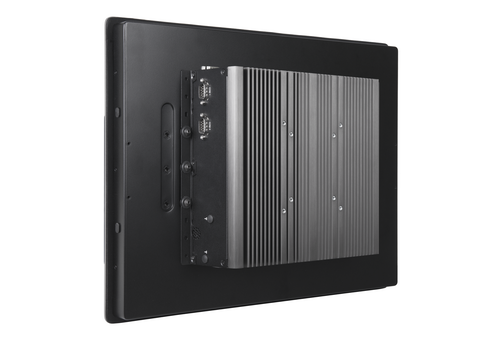

CS-100/P2000 Series
CS-100/P2000系列是一體化的高效能陽光下可視工業平板電腦，屏幕可以從12至19吋做選擇，並帶有投影式電容觸控屏，採用15W低功耗英特爾® 6th Generation Core™移動式處理器，亮度可達1600 nits。是一個堅固可靠的工業平板電腦解決方案，適用於陽光下或戶外工業應用。
型號 :
CS-100/P2000 Series
| CS-P2000 |
| IP65 Compliant Aluminum Die-Cast Front Frame |
| Supports Panel / Wall / VESA Mounting |
| True Flat IP65 Front Panel Protection |
| Wide Operating Temperature (-20°C to 70°C) |
| 12.1" ~19" SVGA TFT-LCD with Resistive 5-wire / Projected CapacitiveTouch |
| Onboard Intel I3-6100U / I5-6300U (15W) |
| Brightness (cd/m2)：1500-1600 |
| Product | Model Name | Display | CPU | I/O | Expansion |
|---|---|---|---|---|---|
|
CS-112 / P2002 | 12.1" TFT / 1024x768 (4:3) / 1500 nits |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
CS-112 / P2002E | 12.1" TFT / 1024x768 (4:3) / 1500 nits |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN) |
|
CS-115 / P2002 | 15" TFT / 1024x768 (4:3) / 1600 nits |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
CS-115 / P2002E | 15" TFT / 1024x768 (4:3) / 1600 nits |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN) |
|
CS-117 / P2002 | 17" TFT / 1280x1024 (5:4) / 1500 nits |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
CS-117 / P2002E | 17" TFT / 1280x1024 (5:4) / 1500 nits |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN) |
|
CS-119 / P2002 | 19" TFT / 1280x1024 (5:4) / 1600 nits |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) |
|
CS-119 / P2002E | 19" TFT / 1280x1024 (5:4) / 1600 nits |
Intel® Core™ i5-6300U Intel® Core™ i3-6100U |
1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO |
2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN) |
